FLOWSERVE CNC Machining Precision Casting Stainless Steel Pump Shaft

Our brand delivers complete technical solutions within the fluid machinery and engineering sectors. Through our range of specialized technologies and product brands, we equip our clients with high-level technical advisory, commercial support, and integrated product solutions — covering pumps, frequency converters, servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and turnkey engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and equipment debugging by our engineers deployed overseas).

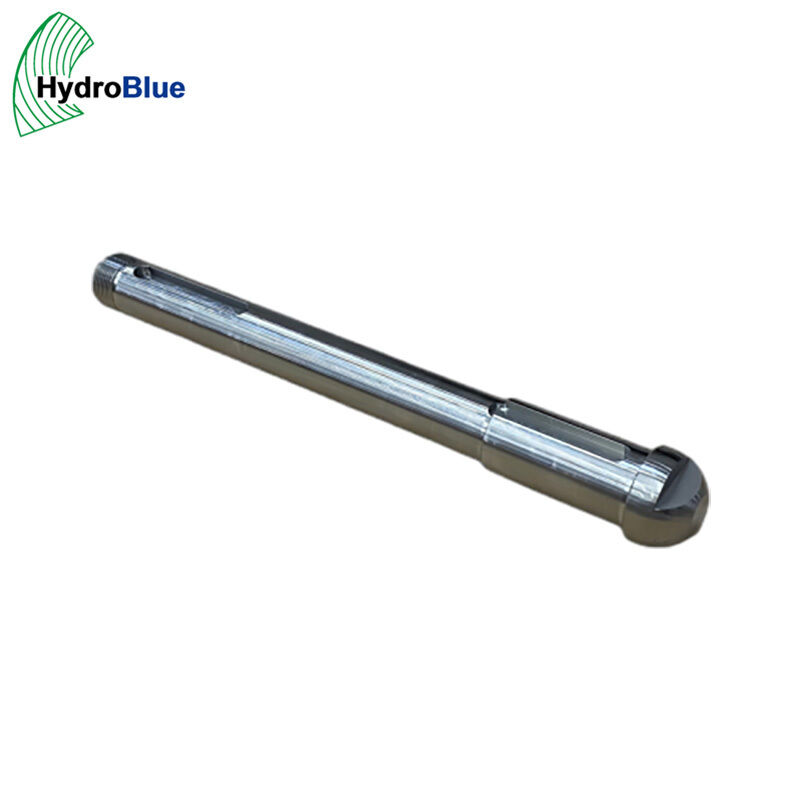

FLOWSERVE Pump Shaft is the central rotating component of a centrifugal pump, transmitting torque from the motor or driver to the impeller. It must withstand torsional loads, bending moments from impeller weight and hydraulic forces, and cyclic fatigue over extended service intervals. The shaft also serves as the mounting surface for bearings, seals, impellers, and shaft sleeves.

Shaft failure is a critical event that can cause complete pump breakdown. Common failure modes include fatigue fracture at keyway stress concentrations, bending from excessive vibration or misalignment, wear at seal and bearing journal surfaces, and corrosion pitting in aggressive fluid environments. A properly manufactured shaft — with correct material, precise journal finishes, and appropriate heat treatment — directly determines pump reliability and mean time between failures (MTBF).

Our FLOWSERVE replacement shafts are produced from certified bar stock or forged blanks, fully machined on CNC lathes and grinders, and individually inspected for dimensional accuracy, runout, and surface finish. FARO 3D scanning is available for reverse engineering when original drawings are unavailable.

1. Raw Material Inspection — Bar stock or forging checked for chemical composition, hardness, and surface condition; material certificate verified
2. Rough Turning — Shaft blank turned to approx. dimensions on CNC lathe; excess stock left for finish machining
3. Heat Treatment — Normalizing, hardening & tempering, or stress relieving per material specification and service requirements
4. Finish Machining — Precision CNC turning and grinding of all bearing journals, seal surfaces, and impeller fit locations to final tolerances
5. Keyway & Feature Cutting — Keyways milled or broached; threads rolled or cut; cross-holes drilled
6. Surface Treatment — Hard chrome plating, nitriding, or blacking applied as specified
7. Final Inspection — Dimensional check, concentricity measurement, surface roughness, NDT, and hardness test
8. Packing & Dispatch — Anti-rust coated, wrapped, and crated for shipment

Every shaft undergoes rigorous quality inspection:

• Material certificate with chemical and mechanical properties per ASTM, DIN, EN, ISO, TOCT
• Dimensional check: overall length, journal diameters, step lengths, runout (TIR), concentricity
• Surface roughness measurement at seal and bearing journal locations (Ra 0.4–0.8μm typical)
• Non-destructive testing: MT for surface cracks, UT for internal soundness, PT for surface defects
• Hardness testing on bearing journals and heat-treated zones
• Keyway gauge check for width, depth, and positional tolerance
• Straightness check on length-to-diameter ratio

Certifications: ISO9001:2015, ISO14001:2004, API Specification Q1.

1. Submit Inquiry — Provide pump model, shaft part number, or high-resolution photographs with key dimensions (overall length, journal diameters, keyway details)
2. Technical Review — Our engineers verify shaft dimensions, material, and surface treatment within 24 hours
3. Quotation Issued — Formal quotation covering material grade, heat treatment, surface finish, lead time, and unit price
4. Production & QC — Manufacturing upon deposit; full dimensional inspection and NDT on every shaft
5. Dispatch & Tracking — Shipment after balance payment; inspection report and material certificates included

• Anti-Rust Coating — Full-length anti-rust coating applied to all machined surfaces
• Protective Wrap — Heavy-duty VCI paper + foam padding on journals and keyways
• Steel Tube / Tube Pack — Long shafts packed in protective steel tube or heavy-duty cardboard tube
• Wooden Crate — Multiple shafts or oversized shafts in ISPM 15-compliant plywood crate
• Custom Packing — Customer-specific labeling and serial number marking available on request

Lead Time: 30 days after deposit. Stainless steel or specialized heat treatment: 45–60 days.

Shipping: Express, Sea freight, Air cargo, Land transport, Post.

Payment: 70% T/T deposit, balance against copy of B/L. L/C accepted for qualified buyers.
