FLOWSERVE Efficient Centrifugal Submersible Pump Balancing Drum

Our brand was established to deliver integrated technical solutions in the fluid machinery and engineering sectors. Backed by a complete portfolio of specialized technologies and product lines, we offer clients expert technical consultation, commercial support, and bundled product solutions — from pumps and frequency converters to servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-cycle engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and field equipment debugging by our dispatched engineers internationally).

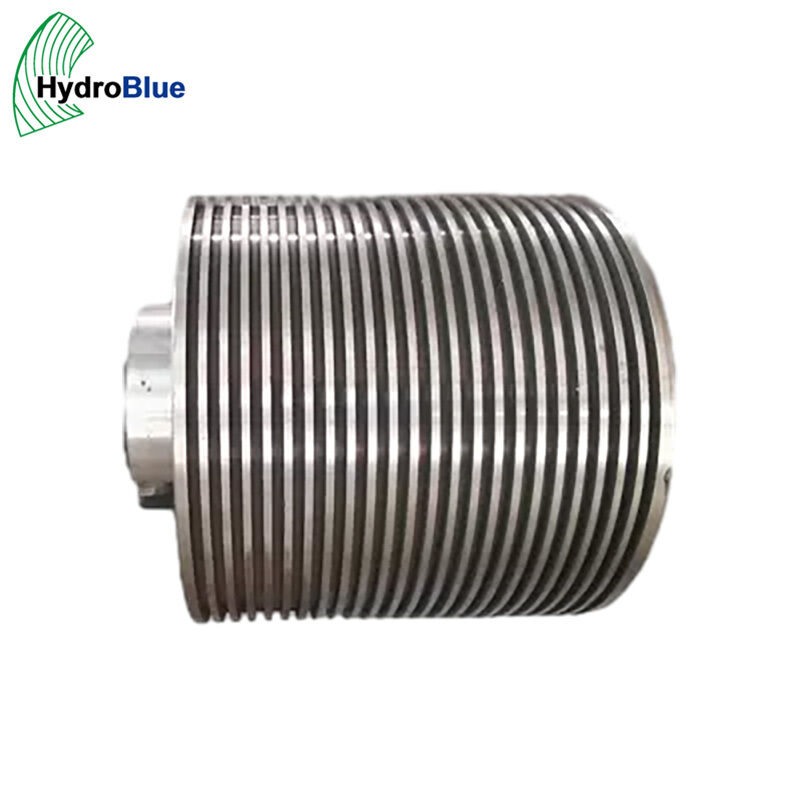

FLOWSERVE Balance Drum (also called balance disc or thrust balance device) is a precision hydraulic component used in multi-stage centrifugal pumps to compensate for axial thrust. In a multi-stage pump, the pressure differential across each impeller generates an unbalanced axial force that pushes the rotor assembly toward the suction end. If uncompensated, this thrust loads the bearings excessively and leads to premature bearing failure and mechanical seal damage.

The balance drum works by maintaining a controlled high-pressure chamber at the pump's discharge side. A thin fluid film between the rotating drum and the stationary balance disc creates a hydraulic force that opposes the impeller thrust. By carefully sizing the drum diameter and the balancing hole dimensions, the hydraulic force is tuned to nearly cancel the axial thrust — typically achieving residual thrust levels below 5% of full impeller thrust.

Common failure modes include wear at the drum-disc interface (from contaminated fluid or dry running), erosion from high-velocity leakage past the balance drum lands, and cracking from thermal cycling. Our replacement balance drums are reverse-engineered using FARO 3D laser scanning to capture the drum diameter, balancing hole geometry, and sealing land profiles — ensuring precise fit and correct thrust balance.

1. Submit Inquiry — Provide pump model, balance drum part number, number of stages, or high-resolution photographs of the worn drum with key dimensions marked
2. Technical Review — Our engineers verify drum diameter, balancing hole pattern, shaft bore, and material requirements within 24 hours
3. Quotation Issued — Formal quotation covering material, surface treatment, lead time, and unit price
4. Sample Approval (Optional) — First article produced for dimensional fit verification before batch production
5. Production & QC — Manufacturing upon deposit; full dimensional inspection and NDT on every unit
6. Dispatch & Tracking — Shipment after balance payment; material certificates included

Every balance drum undergoes precision inspection before shipment:

• Material mill certificate with chemical composition per ASTM, DIN, EN, ISO, TOCT standards
• Dimensional inspection: drum OD, balancing hole diameter and pattern, shaft bore, keyway, and critical sealing lands
• Hardness testing per material specification
• Non-destructive testing: PT, RT, UT, MT as applicable to casting type
• Surface roughness measurement on drum sealing lands
• Visual inspection for surface defects, burrs, and coating quality

Certifications: ISO9001:2015, ISO14001:2004, API Specification Q1.

• Anti-Rust Treatment — All surfaces coated with rust-preventive compound; balancing lands protected with foam inserts
• Individual Wrapping — Each drum wrapped in anti-corrosion paper and bubble wrap
• Export Carton — Small quantities in double-wall corrugated carton with "Precision Component — Handle with Care" labeling
• Wooden Crate — ISPM 15-compliant plywood crate with internal foam padding for large drums
• Custom Packing — Serial number marking and customer-specific documentation available on request

Lead Time: 30 days after deposit. Stainless steel or special coatings: 45–60 days.

Shipping: Express, Sea freight, Air cargo, Land transport, Post.

Payment: 70% T/T deposit, balance against copy of B/L. L/C accepted for qualified buyers.
