FLOWSERVE Heavy-Duty Wear-Resistant Industrial Centrifugal Pump Bowl Assembly

Our brand was established to deliver integrated technical solutions in the fluid machinery and engineering sectors. Backed by a complete portfolio of specialized technologies and product lines, we offer clients expert technical consultation, commercial support, and bundled product solutions — from pumps and frequency converters to servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-cycle engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and field equipment debugging by our dispatched engineers internationally).

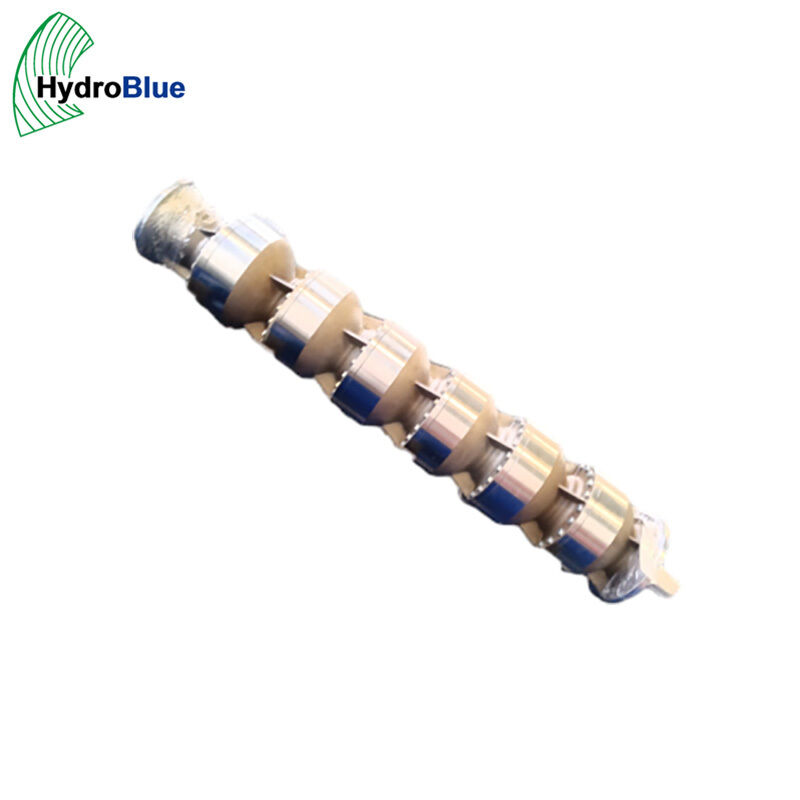

FLOWSERVE Bowl Assembly (also called bowl assembly, bowl unit, or stage bowl) is the core hydraulic module of a multi-stage centrifugal pump. Each bowl contains an impeller, diffuser vanes or volute passages, and the pressure-containing bowl casing that directs fluid from the discharge of one stage to the suction of the next. In vertical turbine pumps and horizontal multi-stage centrifugal pumps, the bowl assembly is the fundamental pumping element — multiple bowls stacked in series generate the total head required by the application.

The bowl assembly must maintain precise hydraulic geometry under high pressure, resist erosion from abrasive or corrosive fluids, and provide reliable sealing between stages. Common failure modes include erosion wear at impeller and bowl passages, corrosion of the bowl interior, cracking from high cyclic pressures, and wear at the shaft sleeve and packing areas.

Our replacement FLOWSERVE bowl assemblies are reverse-engineered using FARO 3D laser scanning to capture the original geometry, including impeller waterways, diffuser passages, bowl bore, and flange dimensions. Produced to exact OEM specifications with full material and quality certification.

1. Submit Inquiry — Provide pump model, bowl assembly part number, stage count, or high-resolution photographs of the worn assembly with key dimensions marked
2. Technical Review — Our engineers verify impeller dimensions, bowl bore, discharge/inlet geometry, and material requirements within 24 hours
3. Quotation Issued — Formal quotation covering material, casting method, surface treatment, tooling (if applicable), lead time, and unit price
4. Sample Approval (Optional) — First article produced for dimensional inspection and balancing before batch production
5. Production & QC — Manufacturing upon deposit; NDT, CMM, and hydrostatic test on every unit
6. Dispatch & Tracking — Shipment after balance payment; CMM report and material certificates included

Every bowl assembly undergoes rigorous multi-stage quality verification:

• Material mill certificate with chemical composition per ASTM, DIN, EN, ISO, TOCT standards
• Impeller static and dynamic balancing test
• Hydrostatic pressure test at 1.5× rated working pressure
• Non-destructive testing: PT, RT, UT, MT as applicable to casting type and material
• 3D CMM dimensional inspection of bowl bore, flange faces, and critical passages
• Hardness and surface roughness measurement
• Visual inspection and final dimensional sign-off

Certifications: ISO9001:2015, ISO14001:2004, API Specification Q1.

• Anti-Rust Treatment — Internal and external surfaces coated with rust-preventive compound
• Individual Wrapping — Bubble wrap and foam padding on all machined surfaces
• Export Carton — Small bowl assemblies in double-wall corrugated carton
• Wooden Crate — Large or multiple bowl assemblies packed in ISPM 15-compliant plywood crate
• Custom Packing — Serial number marking and customer-specific labeling available

Lead Time: 30 days after deposit. Duplex stainless steel or complex geometries: 45–60 days.

Shipping: Express, Sea freight, Air cargo, Land transport, Post.

Payment: 70% T/T deposit, balance against copy of B/L. L/C accepted for qualified buyers.
