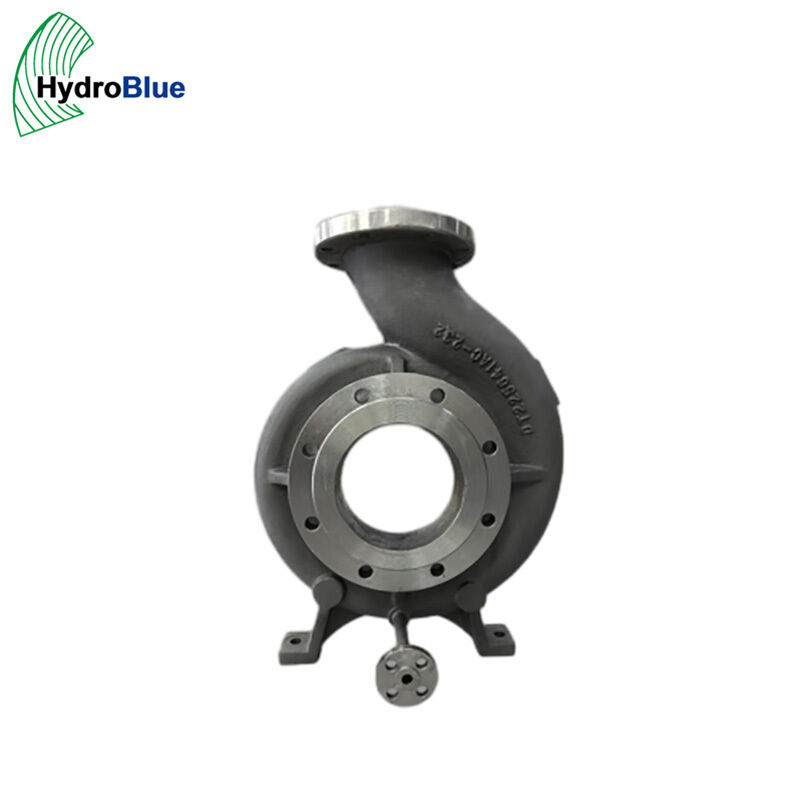

FLOWSERVE Wear-Resistant Centrifugal Pump Replacement Spare Part Volute Casing

Our brand was established to deliver integrated technical solutions in the fluid machinery and engineering sectors. Backed by a complete portfolio of specialized technologies and product lines, we offer clients expert technical consultation, commercial support, and bundled product solutions — from pumps and frequency converters to servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-cycle engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and field equipment debugging by our dispatched engineers internationally).

FLOWSERVE Volute Casing (also called pump casing or volute housing) is the primary pressure-containing structure of a centrifugal pump. It collects the liquid discharged by the impeller and converts the kinetic energy into pressure energy through the gradually expanding spiral volute passage. The casing also houses the impeller, defines the hydraulic passages, and provides the mounting interface for the suction and discharge nozzles, bearing brackets, and sealing elements.

The volute casing is a complex, often thin-walled casting that must withstand the pump's rated working pressure, resist erosion from high-velocity fluids, and maintain precise internal geometry for optimal hydraulic efficiency. Common failure modes include corrosion erosion from abrasive or aggressive fluids, stress cracking at high-pressure ratings, and wear at the cutwater (volute tongue) where the spiral passage meets the impeller discharge.

Our replacement FLOWSERVE volute casings are reverse-engineered to exact OEM dimensions and hydraulic profile. FARO 3D laser scanning captures the full internal geometry — including the volute spiral passage, cutwater geometry, bearing housings, and flange faces — ensuring drop-in interchangeability with the original.

• Hydraulic Accuracy — FARO 3D scan captures full internal geometry; CFD simulation validates volute profile and cutwater design for original hydraulic performance
• Drop-In Interchangeability — Manufactured to OEM dimensions; bolt pattern, flange ratings, and mounting interfaces match the original exactly
• Full Material Range — Cast iron, ductile iron, duplex stainless steel, and alloy steel available for all service conditions
• Hydrostatic Pressure Test — Every casing tested at 1.5× rated working pressure before shipment; no leaks or deformation permitted
• Investment & Sand Casting — Complex geometries use investment casting for precision; larger casings use resin sand casting for cost efficiency
• Coating Options — Epoxy internal coating for seawater service; rubber lining for abrasive slurry applications
