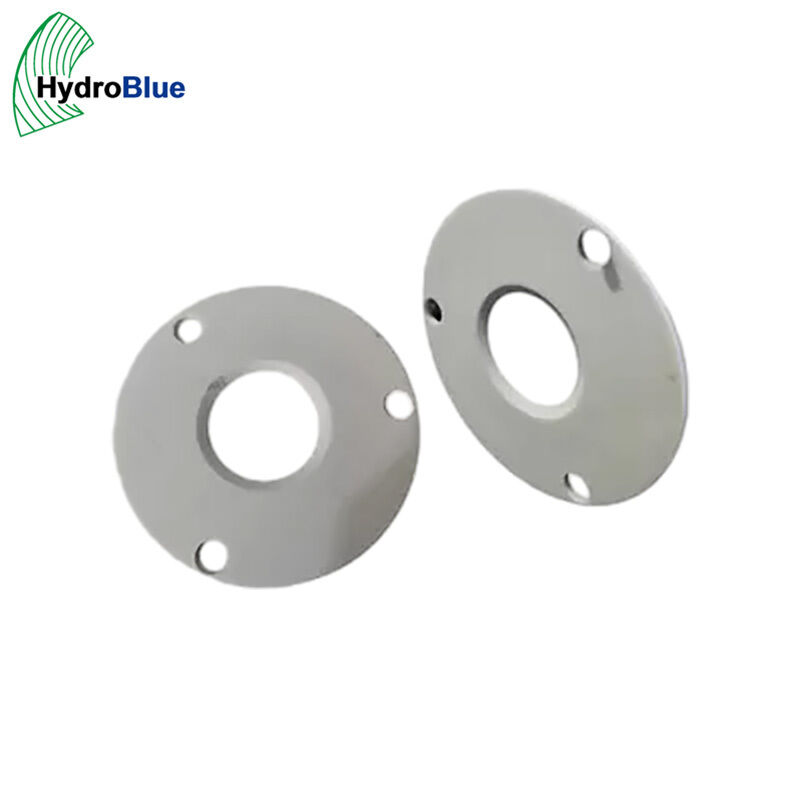

SULZER Centrifugal Pump Dynamic Seal Service Kit

Our self-developed technical brand provides a single-channel solution for fluid machinery requirements — extending from individual spare parts through to complex engineered assemblies and field engineering support. Our scope includes pumps, variable frequency drives, servo controllers, PLC-HMI systems, motor control centers, gear motors and reducers, mechanical seals and their support assemblies, couplings, and industrial gearboxes.

For customers who need on-site technical presence, we offer overseas deployment of our engineers to perform FARO 3D field scanning of worn pump parts for reverse manufacturing, laser alignment verification, and complete equipment commissioning and debugging — ensuring the replacement is installed correctly and operates to specification without extended plant downtime.

Dynamic Seal Service Kit is a pre-assembled set of all wearing components required to overhaul the dynamic sealing system of a centrifugal pump. Depending on the pump configuration, the kit typically includes the mechanical seal (stationary and rotating faces), secondary O-rings and gaskets for the seal chamber, the gland or seal cover gasket, shaft sleeve O-rings, and any associated retaining clips or drive pins. Some kits also include the stuffing box throat bushing and lantern ring for pumps using packed gland sealing.

Using a pre-packaged service kit rather than sourcing individual seal components separately offers three advantages: (1) guaranteed component compatibility — all parts are specified for the exact pump model and seal chamber geometry; (2) single-part-number ordering — one reference covers the entire seal system refresh; (3) reduced inventory risk — no mismatched profiles, missing gaskets, or incorrect O-ring sizes during the maintenance window.

1. Preparation — Depressurize and drain the pump. Remove the casing cover to access the seal chamber. Clean all gasket surfaces and the shaft sleeve
2. Old Seal Removal — Extract the worn rotary and stationary seal components. Inspect the seal chamber bore for wear, scoring, or corrosion — repair or replace if damaged
3. Kit Verification — Unpack the service kit and verify all components against the included manifest. Check O-ring cross-section and seal face diameter against the seal chamber and shaft dimensions
4. Seal Installation — Lubricate O-rings with compatible lubricant. Press the stationary seat into the seal chamber using a seating tool (avoid direct hammer contact). Slide the rotary unit onto the shaft sleeve. Install the gland or seal cover with new gasket
5. Final Check — Rotate the shaft by hand to confirm free movement. No binding, no seal face chatter, and correct gland bolt torque

Detailed installation instructions are included with every service kit. For complex pump configurations, our engineering team can provide remote guidance or on-site support.
