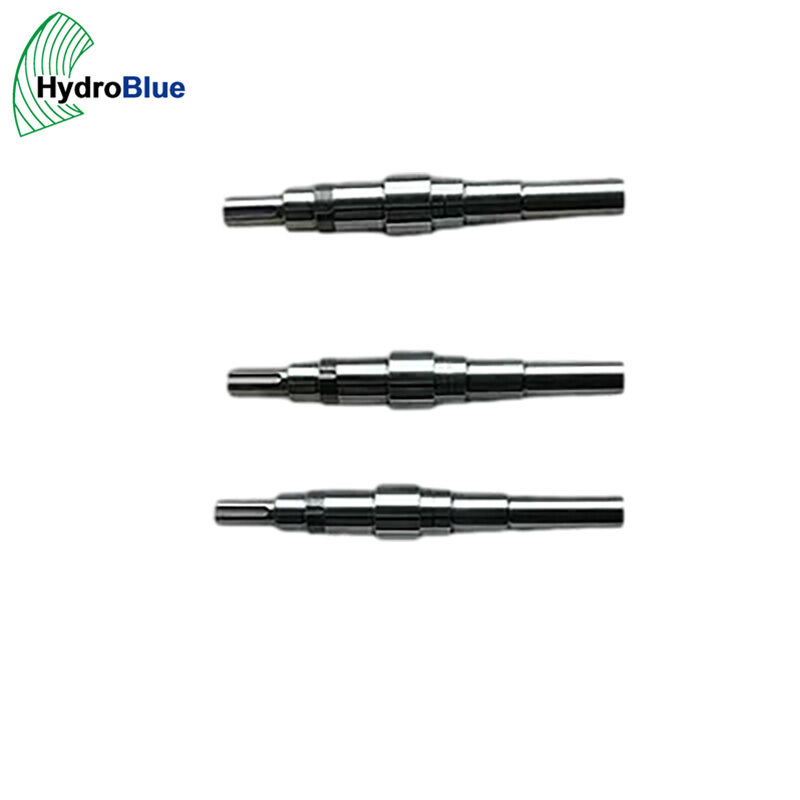

SULZER Cast Iron Cast Steel Stainless Steel Centrifugal Pump Shaft

A pump shaft is the central rotating member that transmits drive torque from the motor to the impeller. It carries torsional load during start-up and running, bending from impeller weight and hydraulic radial force, and cyclic fatigue over long service. It also provides the seating surfaces for bearings, mechanical seals, impellers, and shaft sleeves, so its dimensional accuracy and surface finish strongly affect the reliability of every rotating part mounted on it.

For Sulzer-type pump models our replacement shafts are produced as made-to-order components matched to the original geometry. They are typically machined from certified bar stock or forged blanks, turned and ground on CNC equipment, and inspected for diameter, concentricity, runout, and surface finish at the bearing and seal journals. Where an original drawing is unavailable, the existing or failed shaft can be reverse-engineered.

Shaft condition is usually evaluated together with the rest of the pump; a worn or damaged shaft often points to underlying issues such as misalignment, poor lubrication, or an aggressive fluid that should also be addressed during overhaul.

The table below lists materials commonly considered for pump shafts. The right grade depends on the fluid, temperature, and load, and the final choice should be confirmed with our team using your duty data.

1. Spec Review or Reverse Engineering — Use the original drawing when available; otherwise FARO 3D-scan the existing or broken shaft to rebuild the geometry.
2. Material & Blank Selection — Choose certified bar stock or forging per the fluid and load; confirm heat-treatment requirement.
3. Rough CNC Turning — Machine overall profile, steps, and keyway to leave grinding stock on critical journals.
4. Heat Treatment — Apply hardening or tempering where specified; journals may be locally induction-hardened for wear resistance.
5. Finish Grinding — Grind bearing and seal journals to tolerance and surface finish (seal journals typically toward Ra 0.4 µm).
6. Inspection — Check diameters, roundness, concentricity, runout, and keyway; NDT may be used on higher-grade shafts.
7. Balancing — Balance the finished shaft where the duty calls for it, to reduce vibration at speed.
8. Documentation — Issue a dimensional report, material certificate, and NDT records with the dispatch.

• Overall length & step diameters — Confirm each shoulder matches the pump assembly.
• Bearing journal — Diameter, roundness, and surface finish within the bearing specification.
• Seal journal — Diameter and finish matched to the mechanical seal; a shaft sleeve may be used as a renewable wear surface.
• Impeller fit & thread — Taper or cylindrical fit and end thread suit the impeller and lock nut.
• Keyway — Width, depth, and fillet radius verified; a generous radius reduces stress concentration at the keyway.
• Runout & concentricity — Measured between centres to confirm the shaft runs true after grinding.

• Reverse-Engineering Capability — FARO 3D scanning lets us rebuild a shaft even without the original drawing.
• Certified Material & Heat Treatment — Material grade and treatment are selected and documented for the duty.
• Precision Grinding & Inspection — Journals are finished and checked so seals and bearings fit as intended.
• Full Documentation — Dimensional report, material certificate, and NDT records travel with the part.
• System View — We consider the shaft together with bearings, seal, and impeller rather than as a solo item.

Send your pump model and shaft specification, and our engineering team will confirm the dimensions and material, then return a technical proposal with lead time and pricing — typically within 24 hours of receiving complete data.

Provide your pump model and shaft specification — our engineering team will verify the dimensions and material requirements, and deliver a complete technical proposal with lead time and pricing.
