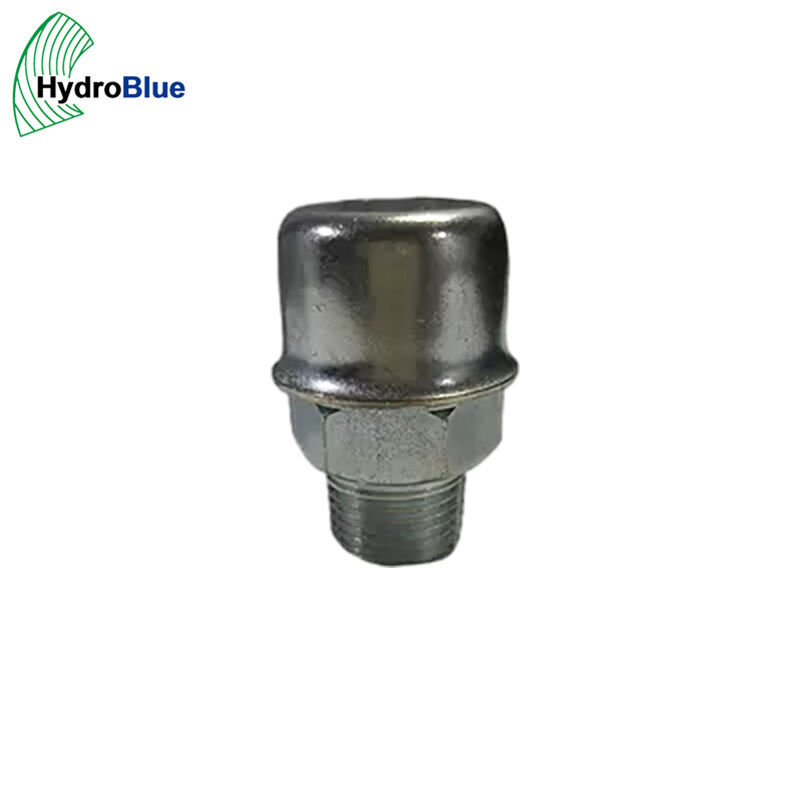

SULZER Precision Casting Industrial Pump Replacement Spare Parts Oil Breather Cap
Product Details
Model NO.:
Oil Breath
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material Standard:
ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct
Material 1:
Cast Iron, Wear-Resistant Cast Iron, Cast Steel
Material 2:
Stainless Steel, Duplex Ss, Cast Alloy Steel
Certificate:
ISO9001:2015, ISO14001:2004, API Specification Q1
Mould:
Investment Casting Mould, Sand Casting Mould
Pump Model.:
Mc/MD/G Sg/CD8/Bbtd/Msd/Mca/Mce/Mcv
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
Vinsome
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
Sulzer pump oil breather cap
,industrial pump replacement parts
,precision casting breather cap
Payment & Shipping Terms
Minimum Order Quantity
1
Price
35
Product Description
SULZER Oil Cup Assembly – Bearing Housing Lubrication Monitoring
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is an engineering-based provider of high-quality pump replacement components to the global industrial fluid handling market — structured around the understanding that dependable pump operation begins with correctly specified, precisely manufactured parts at every level of the assembly.
Our technical team of 8 engineers and technicians integrates knowledge across the critical disciplines for pump engineering: hydraulic system design, mechanical design and precision machining, power electronics, and electronic measurement and control. This cross-functional capability allows us to evaluate each part request in the context of the operating system rather than processing it as an isolated transaction.
Our research collaborations expand our technical foundation:
- Jiangsu University National Research Center of Pumps — hydraulic performance simulation and pump system analysis
- Chinese Academy of Sciences — advanced protective coatings for pump components
- Guangdong University of Technology — industrial automation and variable frequency drive systems
Provide your SULZER pump model and oil sight glass details — we will confirm the correct specification and return a formal quotation with confirmed delivery timing.
OUR BRANDS & SERVICES
Our proprietary brand delivers fully integrated fluid machinery solutions under a single point of accountability — combining parts supply, system engineering, and international field services. The product portfolio includes pumps, frequency converters, servo drives, PLC-HMI controllers, motor control cabinets, electric motors and gear reducers, mechanical seals and assemblies, couplings, and gearboxes. Field engineering services include overseas FARO 3D scanning, laser alignment, pump commissioning, and on-site debugging by our own engineers.
Product Overview
SULZER Oil Sight Glass & Oil Cup Assembly is a bearing-housing-mounted visual indicator that allows operators and maintenance personnel to verify the oil level in the bearing housing without opening the pump. It typically consists of a transparent sight glass (borosilicate glass tube or acrylic prism), a metal or polymer body that threads into the bearing housing wall, sealing O-rings or gaskets, and a protective cage or shroud in some configurations. Some designs include a spring-loaded oil cup that maintains a constant oil level by allowing excess oil to return to the housing while keeping the sight glass filled at the correct level.
The oil cup may also serve as a filling port for adding oil to the bearing housing without disassembly. In pumps operating in outdoor or washdown environments, the sight glass allows quick visual confirmation that the oil level is correct before start-up and during routine inspection rounds.
Our replacement oil sight glasses and cup assemblies are manufactured to match the original SULZER bearing housing thread pattern, mounting dimensions, and seal profile.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Oil Sight Glass / Oil Cup Assembly – SULZER pump bearing housing replacement |
|
Application |
SULZER process pumps, vertical pumps, end-suction pumps — contact for model compatibility |
|
Material (Body) |
Brass, SS 304, SS 316, Aluminum, Cast iron, Polymer (PA/PC) |
|
Material (Sight Glass) |
Borosilicate glass, Polycarbonate (PC), Acrylic (PMMA) |
|
Seal Material |
NBR (standard), FKM (for high-temp oil), PTFE |
|
Thread Type |
Metric (M), BSPP, BSPT, NPT, UNF — per pump housing specification |
|
Standards |
DIN, ISO, ANSI, ASTM |
|
Process |
CNC turning, Threading, Drilling, Polishing, Injection molding (polymer) |
|
Inspection |
Thread gauge check, Seal fit test, Visual clarity inspection, Pressure test |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
10–15 days after deposit (standard); 20 days for 316 SS or special thread |
|
Payment |
70% TT in advance, balance against copy of B/L |
Material Selection
|
Body Material |
Oil Temperature Limit |
Best For |
|---|---|---|
|
Brass |
≤ 150°C |
Standard mineral oil; good machinability, low cost |
|
SS 304 |
≤ 200°C |
Corrosive environment, outdoor installations |
|
SS 316 |
≤ 200°C |
Chemical plants, seawater-adjacent installations |
|
Aluminum |
≤ 120°C |
Lightweight, non-sparking; food-grade or OEM-specific configurations |
|
Polymer (PA/PC) |
≤ 100°C |
Cost-sensitive applications, integrated sight glass design |
Installation & Maintenance Tips
- Thread Sealant — Apply PTFE tape or thread sealant to the body threads before installation; do not overtighten — excessive torque may crack the sight glass or distort the seal
- Orientation — The sight glass should be positioned at the specified oil level height; the oil cup fill line should align with the housing's normal oil operating level
- Cleaning — Clean the sight glass periodically with a soft cloth; avoid abrasive cleaners that can scratch the glass or polymer surface
- Crack Detection — Inspect the sight glass for cracks or fogging during each routine inspection; replace immediately if damaged to prevent oil loss
- O-Ring Replacement — Always replace the sealing O-ring when changing the sight glass assembly to ensure a leak-free seal
