Product Details
Model NO.:
Pump Impeller
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material Standard:
ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct
Material 1:
Cast Iron, Wear-Resistant Cast Iron, Cast Steel
Material 2:
Stainless Steel, Duplex Ss, Cast Alloy Steel
Certificate:
ISO9001:2015, ISO14001:2004, API Specification Q1
Mould:
Investment Casting Mould, Sand Casting Mould
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
Vinsome
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
High Precision CNC water pump impeller
,Andritz pump spare parts impeller
,CNC water pump impeller spare parts
Payment & Shipping Terms
Minimum Order Quantity
1
Price
50
Product Description
ANDRITZ Open Impeller – Slurry & Process Pump Hydraulic Component
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. provides precision-engineered hydraulic components and technical support services to the global pump industry — built on the understanding that the impeller is the heart of any centrifugal pump and demands the highest standard of geometric accuracy and material integrity.
Our 8-person technical team combines practical experience across fluid mechanics, mechanical design and precision manufacturing, electrical power systems, and instrumentation. This multidisciplinary capability allows us to assess each impeller requirement from a complete system perspective — vane geometry, flow regime, material erosion behavior, and the dynamic interaction between impeller and casing.
Research collaborations that strengthen our hydraulic engineering include:
- Jiangsu University National Research Center of Pumps — CFD simulation and impeller vane profile optimization
- Chinese Academy of Sciences — advanced wear-resistant coatings for abrasive service
- Guangdong University of Technology — intelligent drive systems and pump control technology
Send us your ANDRITZ pump model and impeller specifications — our engineering team will confirm the hydraulic profile and material specification and provide a formal quotation with confirmed lead time.
OUR BRANDS & SERVICES
Our technical brand serves as a single-source solution provider for fluid machinery applications worldwide — integrating component supply, system engineering, and international field services. The product portfolio includes pumps, frequency converters, servo drives, PLC-HMI automation platforms, motor control centers, electric motors and gearboxes, mechanical seals and assemblies, couplings, and gear transmissions. Field engineering services include overseas FARO 3D scanning, laser alignment, pump commissioning, and on-site troubleshooting by our own dispatched engineers.
Product Overview

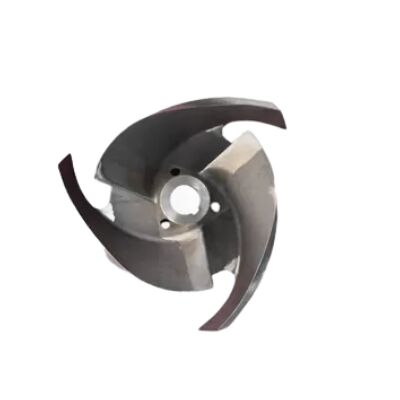

ANDRITZ Open Impeller is a hydraulic rotating component designed for pumps that handle fluids containing solids, fibrous materials, or high concentrations of entrained particles. In the open impeller design, the vanes are attached to a back shroud or hub with no front shroud covering the vane tips. This open-face configuration creates large flow passages that resist clogging and allow the passage of solids up to the vane height.
The clearance between the vane tips and the stationary casing wall (or side liner) is the critical operating parameter — typically 0.3–1.0 mm depending on pump size. As this clearance opens due to wear from abrasives, internal recirculation increases and pump efficiency degrades. A defining advantage of the open impeller is that the axial position can be adjusted — by shimming the bearing housing or adjusting the back cover — to restore the original tip clearance, extending the operational life of the impeller without replacement.
Our ANDRITZ open impellers are produced using FARO 3D laser scanning of original parts for geometric capture, CNC-machined patterns, investment or resin sand casting, and full CMM dimensional verification. Available with vane tip hardfacing and various surface treatments for extended wear life in abrasive service.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Open Impeller – ANDRITZ centrifugal pump replacement |
|
Application |
ANDRITZ slurry pumps, process pumps, wastewater pumps — contact for model compatibility |
|
Material |
Ni-Hard, Cast iron, High-chrome (Cr27+), SS 316, Duplex SS, CD4MCu, Bronze |
|
Standards |
ASTM, SAE, UNS, DIN, EN, ISO |
|
Casting Method |
Investment casting, Resin sand casting, V-process (large impellers) |
|
Vane Profile Scan |
3D CMM — vane angles, thickness, spacing, and wrap angle verified |
|
Balance |
ISO 1940 G6.3 standard; G2.5 on request |
|
Surface Treatment |
Stellite/Tungsten carbide hardfacing (vane tips), Hard chrome (bore), Epoxy coating |
|
Inspection |
CMM scan, Hardness, Static balance, Dye penetrant (NDT), Material cert |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
25–40 days after deposit (standard); 40–55 days (Ni-Hard / high-chrome) |
|
Payment |
70% TT in advance, balance against copy of B/L |
Open vs. Closed Impeller Comparison
|
Parameter |
Open Impeller |
Closed Impeller |
|---|---|---|
|
Solids passage |
Large, unobstructed flow passages |
Enclosed passages, prone to blockage |
|
Best efficiency |
80–90% of closed impeller |
Higher peak efficiency |
|
Wear compensation |
Yes — axial adjustment restores clearance |
No — wear requires replacement |
|
Clog resistance |
Excellent — stringy materials pass freely |
Poor — solids accumulate in vanes |
|
Typical cost |
Lower (simpler foundry pattern) |
Higher (requires core assembly) |
|
Primary markets |
Slurry, mining, pulp & paper, wastewater |
Clean water, chemical, high-pressure process |
Why Choose Our Open Impellers
- FARO 3D Reverse Engineering — Full surface scan of the original impeller captures every vane profile detail, bore position, and keyway location without drawings
- High-Chrome Casting Expertise — Specialized in high-chromium white iron (Cr27%+) for extreme abrasive wear in ANDRITZ slurry pump applications
- Vane Tip Hardfacing — Stellite 6 or tungsten carbide overlay applied to vane tips for 3–5× longer clearance life in abrasive service
- CMM Verification — Every impeller undergoes 3D CMM vane profile scanning before shipment; profile report provided
- Balance Certification — Static or dynamic balance report included with each impeller
