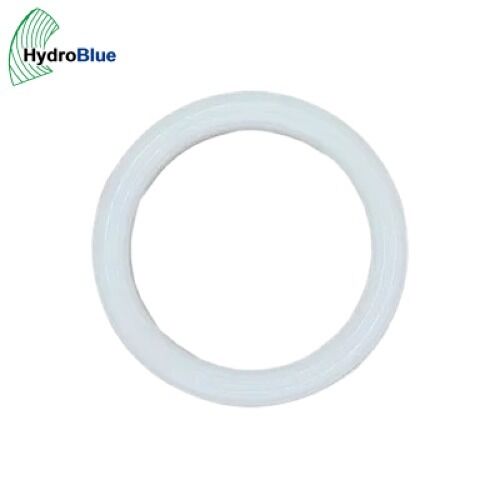

SANDPIPER NBR Aodd Air Operated Double Diaphragm Pump Valve Seat
Product Details
Model NO.:
Valve Seat
Suitable Brand:
Sandpiper
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material:
Santoprene / PTFE / Buna-N / Viton / EPDM / Neopre
Certificate:
ISO9001:2015, ISO14001:2004
Mould:
Investment Casting Mould, Plastic Die-Casting Mold
Pump Model.:
B05m / B10m / B15m / B20m / B30m
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
HydroBlue
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
Buna-N NBR diaphragm pump valve seat
,Sandpiper AODD pump replacement part
,air operated double diaphragm valve
Payment & Shipping Terms
Minimum Order Quantity
1
Price
50
Product Description
SANDPIPER Air Valve Seat – Valve Spool Bore & Pilot Valve Seat Replacement
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is a client-focused technical enterprise offering end-to-end solutions in fluid machinery, fluid engineering, industrial automation, and frequency conversion technologies. Our 8-person technical team covers fluid engineering, electrical engineering, and electronic engineering disciplines, enabling us to translate R&D capabilities into reliable commercial products. Alliances with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology strengthen our expertise in hydraulic systems, specialized coatings, and industrial control technologies. Jiangsu University National Research Center of Pumps provides pneumatic valve seat wear analysis and sealing surface optimization for SANDPIPER AODD pump air distribution systems; Chinese Academy of Sciences contributes precision lapping and surface finishing technology for valve seat manufacturing; Guangdong University of Technology supports automated valve seat inspection systems and leak test methods for our pneumatic component production.
Attach your pump model and air valve seat requirements to your inquiry — our engineering team will verify specifications and provide a competitive quotation within 24 hours.
OUR BRANDS & SERVICES
Our self-developed brand was founded to serve the fluid machinery and engineering sector with comprehensive technical solutions. Our ecosystem of proprietary technologies and product brands offers clients high-caliber technical consultation, sales support, and comprehensive product solutions — including pumps, variable frequency converters, servo drives, PLC-HMI, control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-scope engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and equipment debugging by our engineers deployed internationally).
Product Overview
SANDPIPER Air Valve Seat (also referred to as the spool valve bore, valve body bore, or pilot valve seat) is the precision-machined internal surface inside the air valve body that the main spool and pilot valve seal against. The air valve seat is not a separate removable component in most SANDPIPER designs — instead, it is the finished bore or seat surface machined directly into the valve body casting. Replacement is accomplished by replacing the complete valve body assembly or by re-sleeving the worn bore.
In the main spool bore, the air valve seat provides the cylindrical sealing surface against which the spool outer diameter seals using O-rings, u-cups, or PTFE seals. The seat surface must maintain tight dimensional control to ensure the spool shifts freely without excessive air bypass. In the pilot valve, the seat is typically a flat or tapered surface that the pilot plunger contacts to seal the pilot air ports.
When the air valve seat wears due to contamination, spool/seal debris, or corrosion, the pump experiences air bypass, reduced pumping efficiency, stalling, or failure to shift. Valve seat wear can be diagnosed by air consumption tests and spool clearance measurements.
Our SANDPIPER air valve seat solutions include: complete valve body replacement assemblies, valve body re-sleeving service for standard SANDPIPER models, and pilot valve body replacements with precision-lapped seat surfaces.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Air Valve Seat (Spool Bore / Pilot Seat) – SANDPIPER AODD pump pneumatic system |
|
Application |
SANDPIPER S, SB, H, HF, ES, G, L series — contact for model compatibility |
|
Valve Seat Type |
Main spool bore, Pilot valve seat, Valve body with integrated seat |
|
Body Material |
Aluminum (standard, anodized), SS 316 (chemical service), Engineering plastic (PP/PVDF) |
|
Seat Surface Finish |
Ra 0.4 – 0.8 μm (spool bore); Lapped surface (pilot seat) |
|
Hardness |
Anodized Al: 60–70 Rockwell 15T; SS 316: as-machined |
|
Seal Interface |
Cylindrical bore (spool), Flat/tapered seat (pilot), O-ring or gasket face |
|
Manufacturing |
CNC boring, Honing, Lapping, Anodizing, Passivation |
|
Inspection |
Bore dimensional CMM, Surface finish Ra, Air leak test, Spool travel fit test |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
10–25 days after deposit |
|
Payment |
70% TT in advance, balance against copy of B/L |
Valve Seat Wear & Diagnosis
|
Condition |
Symptom |
Diagnostic Method |
Remedy |
|---|---|---|---|
|
Spool bore wear |
Air bypass at spool seals; spool loose fit |
Spool-to-bore clearance measurement with bore gauge |
Replace valve body assembly or re-sleeve bore |
|
Pilot seat pitting |
Pilot valve leakage; pump stalling at stroke end |
Air leak test at pilot exhaust port |
Replace pilot valve body or re-lap seat surface |
|
Anodized bore spalling |
Bore surface flaking; spool drag |
Visual inspection through air ports |
Replace valve body assembly |
|
Corrosion on seat surface |
Air consumption increase; spool sticking |
Borescope inspection; compare to new condition |
Replace with SS 316 valve body |
Why Choose Our SANDPIPER Air Valve Seat Solutions
- Precision Surface Finish — The spool bore is honed to correct surface finish (Ra 0.4–0.8 μm) for optimal seal retention and low friction
- Re-Sleeving Service Available — For standard SANDPIPER models, we can re-sleeve the worn spool bore with a precision stainless steel liner instead of replacing the entire body
- Material Upgrade Option — Standard aluminum valve bodies can be replaced with SS 316 versions for corrosive environment air supplies
- Seat Leak Test — Every replacement valve body or re-sleeved assembly is air leak-tested before dispatch
- Full Assembly Available — We supply complete valve body assemblies with integrated seat, seals, and spool as a ready-to-install unit
