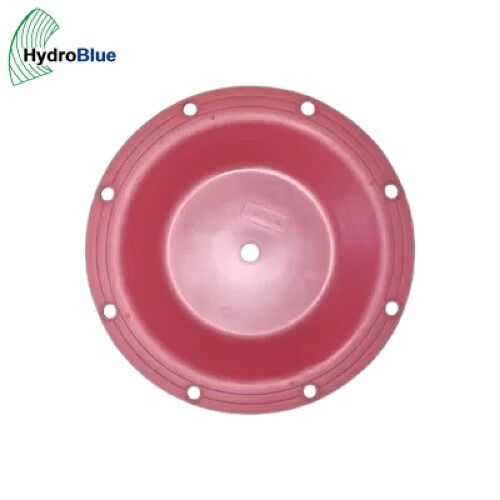

SANDPIPER Pump Spare Parts Neoprene Santoprene Diaphragm 286.005.354
Product Details
Model NO.:
Diaphragm
Suitable Brand:
Sandpiper
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material:
Santoprene / PTFE / Buna-N / Viton / EPDM / Neopre
Certificate:
ISO9001:2015, ISO14001:2004
Mould:
Investment Casting Mould, Plastic Die-Casting Mold
Pump Model.:
B05m / B10m / B15m / B20m / B30m
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
HydroBlue
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
Sandpiper Pump neoprene diaphragm
,Santoprene Sandpiper Pump parts
,Sandpiper Pump diaphragm 286.005.354
Payment & Shipping Terms
Minimum Order Quantity
1
Price
50
Product Description
SANDPIPER Diaphragm – Failure Diagnosis, Installation & How to Order
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is a professional engineering enterprise providing comprehensive technical solutions in fluid machinery, fluid engineering, industrial automation, and frequency conversion systems. Our team of 8 technical professionals in fluid engineering, electrical engineering, and electronic engineering combines deep technical expertise with flexible manufacturing capabilities. Partnerships with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology underpin our capabilities in hydraulic R&D, specialty coating applications, and intelligent industrial drive technologies. Jiangsu University National Research Center of Pumps provides diaphragm flex fatigue modeling and composite material testing for SANDPIPER AODD pump diaphragm applications; Chinese Academy of Sciences develops advanced PTFE bonding technology and fabric reinforcement processing for high-durability diaphragm manufacture; Guangdong University of Technology supports compression molding process automation and in-line hardness testing for consistent diaphragm quality.
Inquire with your pump model and diaphragm specifications — our engineering team will assess compatibility and provide a detailed technical response.
OUR BRANDS & SERVICES
Our brand provides professional overall technical solutions in fluid machinery and engineering. We specialize in industrial control and drive equipment, mechanical seals, and overseas field engineering solutions. Our ecosystem of specialized technologies and product brands empowers our clients with high-caliber technical guidance, commercial support, and integrated product solutions — including pumps, frequency converters, servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and systems, couplings, gearboxes, and engineering solutions (overseas on-site 3D scanning reverse molding of pump replacement parts to your satisfaction, and on-site equipment debugging services by overseas dispatched engineers).
Common Diaphragm Failure Modes
|
Failure Mode |
Symptom |
Root Cause |
Prevention / Solution |
|---|---|---|---|
|
Flex fatigue cracking |
Cracks at diaphragm flex zone radius; fluid leakage to air side |
Normal wear after extended cycle life; excessive pump speed |
Reduce pump speed; upgrade to fabric-reinforced diaphragm |
|
Chemical attack / swelling |
Diaphragm softens, swells, or blisters on fluid side |
Incompatible elastomer material for the pumped fluid chemistry |
Select chemical-resistant elastomer; upgrade to PTFE-faced diaphragm |
|
Abrasive wear |
Thinning of diaphragm surface on fluid side; visible scoring |
Abrasive particles in fluid eroding diaphragm surface |
Use PTFE-faced or fabric-reinforced diaphragm; install inlet strainer |
|
Pinch / clamping failure |
Diaphragm tears at outer bolt circle or center hole |
Overtorqued bolts, misaligned diaphragm assembly, debris between clamping surfaces |
Use torque wrench; verify diaphragm centered before tightening; clean clamping surfaces |
|
Over-pressure rupture |
Sudden catastrophic diaphragm burst |
Pump operated above maximum rated air pressure; discharge blockage |
Install pressure regulator; verify discharge line is not closed against deadhead |
Diaphragm Installation Guide
- Inspect the New Diaphragm — Verify the diaphragm material, thickness, bolt hole pattern, and center hole match the original
- Clean Clamping Surfaces — Remove all debris, old gasket material, and fluid residue from the diaphragm clamping surfaces on the air side and fluid side housings
- Center the Diaphragm — Align the diaphragm center hole with the shaft; ensure the diaphragm is not twisted or off-center
- Assemble Outer Bolts — Install and loosely tighten the outer bolts; ensure even spacing and no pinching of the diaphragm between the housing halves
- Tighten to Torque — Tighten bolts in a cross-pattern to the torque specified for your SANDPIPER model; overtightening can crack the housing or tear the diaphragm
- Cycle Test — After installation, operate the pump at low air pressure to verify the diaphragms flex freely and there are no air or fluid leaks at the diaphragm joint
How to Order
- SANDPIPER Pump Model & Size — Fastest identification of the correct diaphragm dimensions, bolt pattern, and center hole size
- Diaphragm Material — NBR, Neoprene, EPDM, FKM, or PTFE-faced; match to your fluid chemistry, temperature, and abrasiveness
- Construction Type — Homogeneous elastomer, fabric-reinforced, or PTFE-faced with elastomer backer
- Certification Requirement — Standard industrial, FDA-compliant, or 3A-sanitary certified diaphragm
- Quantity — Single diaphragm, pair (both sides), or bulk order for multiple pumps
- Delivery — 7–15 days; PTFE-faced diaphragms 15–25 days
Payment: 70% T/T deposit, balance against copy of B/L. Small orders via PayPal or Western Union.
FAQ
Q1: How often should SANDPIPER diaphragms be replaced?
A: Diaphragm replacement intervals depend on the fluid type, operating pressure, and duty cycle. In general SANDPIPER chemical service with standard elastomer diaphragms, replacement every 6–12 months is typical. In aggressive or high-cycle service, 3–6 months. Monitor for reduced flow rate, air bubbles in the fluid, or fluid in the air exhaust as indicators of imminent diaphragm failure.
Q2: Can I use a PTFE-faced diaphragm in a pump that originally used an elastomer diaphragm?
A: PTFE-faced diaphragms are direct replacements for elastomer diaphragms in most SANDPIPER models. Note that PTFE-faced diaphragms have slightly different flex characteristics and may require a small increase in air pressure to achieve the same flow rate. They offer significantly better chemical resistance and flex life in aggressive chemical service.
Q3: What is the difference between a bolted diaphragm and a one-piece diaphragm?
A: A bolted diaphragm has a separate center disc that bolts to the diaphragm shaft. A one-piece diaphragm has the center hole molded as an integral part of the diaphragm, with a metal insert that accepts the shaft bolt. Both types are interchangeable on pumps designed for bolted diaphragms, but the one-piece design eliminates potential leak paths at the center seal.
Recommended Products
