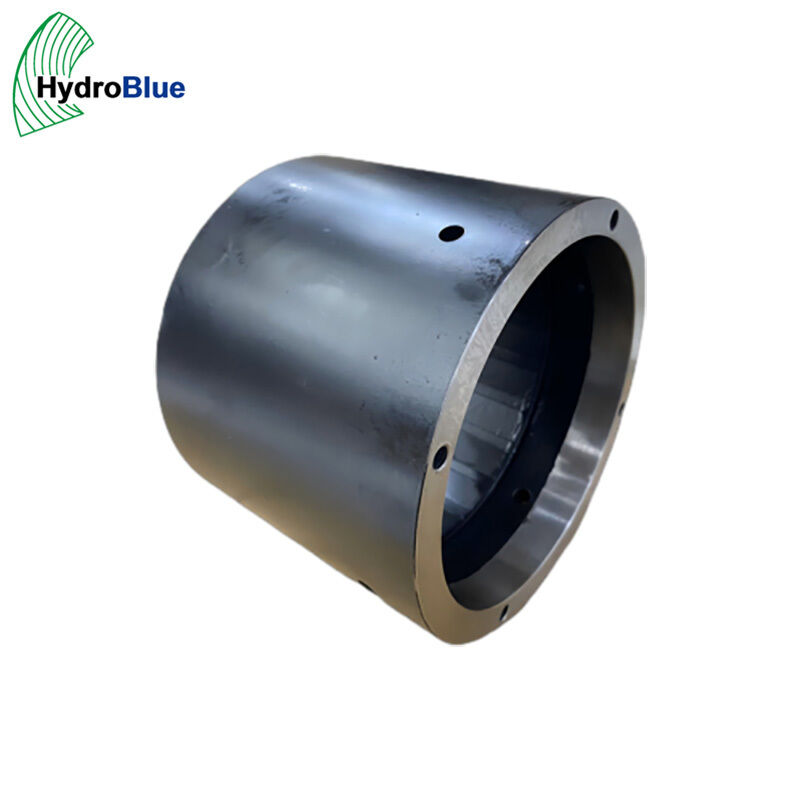

FLOWSERVE CBED Magnetic Pump Spare Parts External Magnet

Product Details
Model NO.:
Pump Spare Parts
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material Standard:
ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct
Material 1:
Cast Iron, Wear-Resistant Cast Iron, Cast Steel
Material 2:
Stainless Steel, Duplex Ss, Cast Alloy Steel
Certificate:
ISO9001:2015, ISO14001:2004, API Specification Q1
Mould:
Investment Casting Mould, Sand Casting Mould
Pump Model.:
Hpx/Hdx/Hed/Wcc/DMX
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
HydroBlue
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:

Flowserve magnetic pump spare parts

,

external magnet pump components

,

Flowserve Cbed pump replacement parts

Payment & Shipping Terms
Minimum Order Quantity
1
Price
50
Product Description
FLOWSERVE External Magnet – Drive Magnet Assembly

About Dongguan HydroBlue Co., Ltd.

DONGGUAN HydroBlue CO.,LTD. is a technology-driven enterprise delivering integrated solutions in fluid machinery, fluid engineering, industrial automation, and variable frequency drive systems. Our team of 8 professionals specializes in fluid engineering, electrical engineering, and electronic engineering, bridging applied research and practical manufacturing. Close collaboration with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology keeps our capabilities at the leading edge in hydraulic development, specialty coating applications, and intelligent industrial drive technologies.

FLOWSERVE CBED Magnetic Pump Spare Parts External Magnet 0

Provide your magnetic pump model and external magnet part number — our technical team will cross-reference compatibility and provide a detailed quotation with lead time.

OUR BRANDS & SERVICES

Our brand delivers complete technical solutions within the fluid machinery and engineering sectors. Through our range of specialized technologies and product brands, we equip our clients with high-level technical advisory, commercial support, and integrated product solutions — covering pumps, frequency converters, servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and turnkey engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and equipment debugging by our engineers deployed overseas).

Product Overview

FLOWSERVE CBED External Magnet (also called outer magnet, drive magnet, or magnet rotor assembly) is the key power transmission component in a magnetic drive pump. The external magnet assembly is mounted on the motor shaft and contains a ring of high-strength permanent magnets secured within a metal housing or carrier. When the motor rotates the external magnet assembly, its magnetic field couples across the containment shell (can) to the internal magnet rotor, driving the pump impeller without any mechanical shaft penetration — achieving zero leakage.

The external magnet must withstand continuous operation at motor speed, elevated temperatures from pumpage heat conducted through the containment shell, and the torque load transmitted to the internal rotor. The most common failure mode is demagnetization — partial or complete loss of magnetic flux caused by excessive temperature (typically above 120°C for NdFeB, 220°C for SmCo), over-torque events (dry running, starting against closed valve), or prolonged eddy current heating from mismatched magnetic gap or worn containment shell.

Our replacement FLOWSERVE CBED external magnets are manufactured to OEM specifications using premium permanent magnet grades (NdFeB N35EH / SmCo 2:17). Each assembly is magnetized to the specified pole count and flux density, with balanced rotation verified at operating speed. Ideal for ANSI and ISO magnetic drive pumps in chemical, petrochemical, and pharmaceutical processes.

Technical Specification

Category

Details

Product

External Magnet Assembly – FLOWSERVE CBED magnetic pump replacement

Application

FLOWSERVE CBED series magnetic drive pumps, ANSI/ISO mag-drive pumps — contact for model compatibility

Magnet Material

Neodymium Iron Boron (NdFeB) N35EH – N52EH; Samarium Cobalt (SmCo 2:17) for high-temperature service

Magnet Housing Material

Stainless steel 304/316, Carbon steel with anti-corrosion coating

Pole Count

4-pole, 6-pole, 8-pole as per OEM specification

Magnet Grade

NdFeB: Max operating temp 80–150°C; SmCo: Max operating temp 250–350°C

Coating / Encapsulation

Epoxy coating (standard), Nickel plating, Parylene coating, or stainless steel encapsulation for corrosive environments

Process

CNC machining, Turning, Grinding, Keyway milling, Magnet bonding/encapsulation, Magnetizing, Dynamic balancing

Inspection

Magnetic flux measurement, Pole pattern check, Dynamic balance test, Dimensional check, Surface finish verification

Reverse-Engineering

FARO 3D Laser Scanning, Laser Alignment, Design model, Magnetic field simulation

Certificate

ISO9001:2015, ISO14001:2004, API Specification Q1

Packing

Anti-rust wrap + foam padding; export carton with "Magnetic – Handle with Care" labeling

Delivery

30 days after deposit

Payment

70% TT in advance, balance against copy of B/L

Magnet Grade Selection Guide

Pumpage Temperature

Recommended Magnet Grade

Max Continuous Temp

≤ 80°C (176°F)

NdFeB N35EH

120°C

80–120°C (176–248°F)

NdFeB N38SH / N45UH

150°C

120–180°C (248–356°F)

NdFeB N42EH

200°C

180–250°C (356–482°F)

SmCo 2:17 (rare earth)

350°C

Why Choose Our External Magnets
  • Grade-Guaranteed Magnets — Sourced from certified magnet manufacturers with full BH curve testing; Grade N35EH and above ensure consistent torque capacity
  • Temperature-Matched Selection — NdFeB for standard service up to 150°C; SmCo 2:17 for high-temperature chemical and hot oil applications up to 350°C
  • Dynamic Balance Tested — Every external magnet assembly dynamically balanced at operating speed to minimize vibration and extend bearing and shell life
  • Corrosion Protection — Epoxy coating (standard), nickel plating, or full stainless steel encapsulation for aggressive chemical environments
  • Pole Pattern Verification — Pole count, pole arc, and magnetic flux density verified against OEM specification; full coupling torque tested on sample basis
  • Direct Interchangeability — Manufactured to match OEM dimensions for FLOWSERVE CBED and other major magnetic pump brands
How to Order
  1. Submit Inquiry — Provide pump model, external magnet part number, pumpage temperature (or photos with dimensions marked)
  2. Technical Review — Our engineers verify magnet grade, pole count, housing dimensions, and mounting interface within 24 hours
  3. Quotation Issued — Formal quotation covering magnet grade, housing material, coating, lead time, and unit price
  4. Production & QC — Manufacturing upon deposit; flux measurement, balance test, and full dimensional check included
  5. Dispatch & Tracking — Shipment after balance payment; inspection report and material certificates included
Packing & Shipping
  • Anti-Rust Treatment — Housing surfaces coated with rust-preventive compound
  • Magnetic Shielding — Steel plate or Mu-metal shield fitted on magnet face to prevent flux damage to adjacent components in transit
  • Foam Padding — Heavy-duty foam inserts within carton to immobilize the magnet assembly
  • Export Carton — Double-wall corrugated carton with "Contains Strong Magnets — Keep Away From Electronics" labeling
  • Custom Packing — Customer-specific labeling and documentation available on request

Lead Time: 30 days after deposit. SmCo or custom magnet grade: 45–60 days.

Shipping: Express (air freight recommended for magnetized assemblies to minimize transit exposure), Sea freight, Land transport.

Payment: 70% T/T deposit, balance against copy of B/L. L/C accepted for qualified buyers.

Other Magnetic Pump Parts We Supply

Category

Parts

Magnetic Drive Assembly

External Magnet, Internal Magnet, Containment Shell (Can), Bearing Carrier

Rotating Parts

Impeller, Expeller, Shaft, Bearing

Stationary Parts

Pump Casing, Casing Cover, Side Plate, Bearing Cover, Labyrinth Ring

Sealing Parts

Packing Seal, Gasket, O-Ring, Isolator

Service Kits

Exchange unit assembly, Bearing unit service kit, Dynamic seal service kit, Vent device
