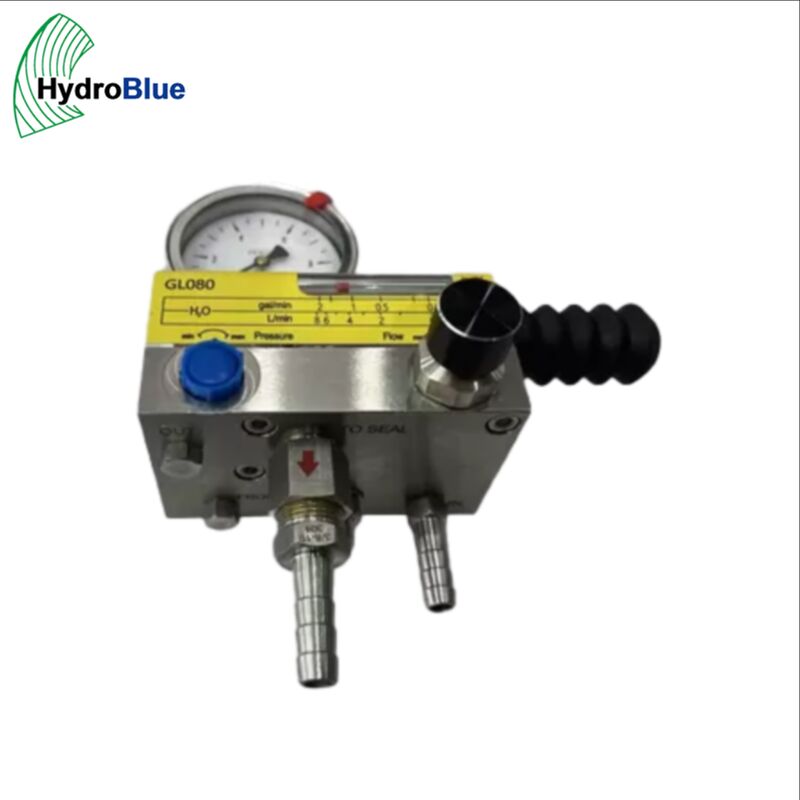

SAFEMATIC SWE-GLD Reliable Premium Double Seals Support Seal Water Control Monitoring System

Our brand provides professional overall technical solutions in fluid machinery and engineering. We specialize in industrial control and drive equipment, mechanical seals, and overseas field engineering solutions. Our ecosystem of specialized technologies and product brands empowers our clients with high-caliber technical guidance, commercial support, and integrated product solutions — including pumps, frequency converters, servo drives, PLC-HMI, industrial control cabinets, motors, mechanical seals and systems, couplings, gearboxes, and engineering solutions (overseas on-site 3D scanning reverse molding of pump replacement parts to your satisfaction, and on-site equipment debugging services by overseas dispatched engineers).

The most critical operating parameter for a dual seal water station is the differential pressure between the barrier fluid system and the pump seal chamber. John Crane recommends maintaining the barrier fluid pressure at 2.0 bar ± 0.5 bar above the seal chamber pressure at all pump operating conditions. For pumps operating with varying suction or discharge pressure (e.g., variable-speed or multi-stage pumps), the differential pressure must be maintained throughout the entire operating envelope.

Pressure Setting Procedure:

1. Measure or estimate the seal chamber pressure at the pump's normal operating point. For single-stage centrifugal pumps, seal chamber pressure is approximately 80–90% of the pump discharge pressure
2. Set the nitrogen pressure regulator to deliver barrier fluid pressure = seal chamber pressure + 2.0 bar
3. For Plan 53B bladder accumulators, pre-charge the bladder gas side to 60–70% of the required barrier fluid pressure; the system pressure will increase when barrier fluid is pumped into the accumulator fluid side
4. For Plan 53C with a piston accumulator, pre-charge the gas side to the same pressure as the required barrier fluid pressure; the circulation pump charges the system to the final operating pressure
5. Verify the relief valve set point is at least 1.1× the working pressure; the relief valve must pop before the seal's maximum pressure rating is exceeded

1. System Cleanliness Verification — Flush all piping and the reservoir with clean solvent; blow dry with nitrogen; ensure no debris, weld slag, or machining chips remain in the system
2. Barrier Fluid Fill — Fill the system with the specified barrier fluid (clean water, water-glycol, or synthetic oil per John Crane seal recommendation). Vent all air from the circulation loop via the highest vent point
3. Nitrogen Pressure Charge — Connect the nitrogen supply; set the pressure regulator to the calculated differential pressure; verify that the system holds pressure without decay for 15 minutes
4. Circulation Pump Start — Start the circulation pump (Plan 53C/54); verify flow through the sight glass; confirm barrier fluid temperature does not rise more than 5°C within the first 30 minutes of operation without cooling
5. Cooling Water Supply — Open cooling water supply to the heat exchanger; adjust flow until barrier fluid temperature stabilizes at 10–20°C above the cooling water inlet temperature
6. Pump Start & Differential Verification — Start the pump; monitor barrier fluid differential pressure; as the pump pressurizes the seal chamber, verify the differential stays within the 2.0 ± 0.5 bar target. Re-adjust the nitrogen regulator if the differential drifts
7. Alarm & Shut-Down Test — Test each alarm point: low-pressure, high-temperature, low-reservoir level. Confirm each triggers the specified alarm output and/or pump shut-down interlock

1. John Crane Dual Seal Model & Size — Seal type (Type 7, 8A-1, 8B-1, 89/99, 7160, 7180, 7198, etc.) and seal size in mm
2. API Piping Plan Required — Plan 53A, 53B, 53C, or 54; specify the preferred circulation method
3. Operating Conditions — Pump process pressure (min, normal, max), process temperature, and barrier fluid temperature target
4. Fluid Compatibility — Process fluid type (chemical name, concentration, pH, specific gravity) to select barrier fluid and wetted material compatibility
5. Reservoir Volume & Pressure Rating — 10 L / 20 L / 50 L standard; pressure rating 16 bar, 25 bar, or 40 bar
6. Power Supply — Voltage and frequency for circulation pump motor and instrumentation power
7. Special Requirements — ATEX/IECEx hazardous area rating, dual instrumentation for SIL-rated applications, or special material for aggressive barrier fluids

Payment: 70% T/T deposit, balance against copy of B/L.
