REXNORD OMEGA Coupling
>

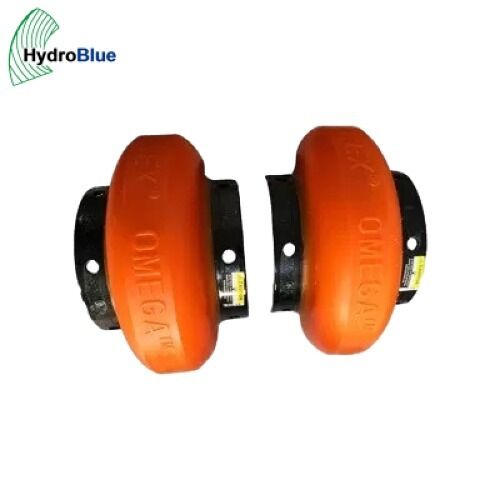

High Temperature Resistant High Speed REXNORD VIVA Coupling
Product Details
Model NO.:
Coupling
Torque:
62-6500
Bore Diameter:
10-165
Speed:
1000-5400
Structure:
Flexible
Material:
Carbon Steel+Plastic
Type:
Coupling
Pump Model:
APP/Npp/Wpp/EPP/Aup/Zpp/CPT/Ohhl
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material Standard:
ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct
Material 1:
Cast Iron, Wear-Resistant Cast Iron, Cast Steel
Material 2:
Stainless Steel, Duplex Ss, Cast Alloy Steel
Certificate:
ISO9001:2015, ISO14001:2004, API Specification Q1
Mould:
Investment Casting Mould, Sand Casting Mould
Pump Model.:
Mc/MD/G Sg/CD8/Bbtd/Msd/Mca/Mce/Mcv
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
high temperature resistant shaft coupling
,star shaped high speed coupling
,standard shaft coupling with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Price
35
Product Description
REXNORD Pump Coupling – Power Transmission Shaft Coupling for Industrial Pumps
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is a client-focused technical enterprise offering end-to-end solutions in fluid machinery, fluid engineering, industrial automation, and frequency conversion technologies. Our 8-person technical team covers fluid engineering, electrical engineering, and electronic engineering disciplines, enabling us to translate R&D capabilities into reliable commercial products. Alliances with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology strengthen our expertise in hydraulic systems, specialized coatings, and industrial control technologies. Jiangsu University National Research Center of Pumps provides pump-drive torque transmission analysis and torsional vibration modeling for REXNORD coupling applications in centrifugal and positive displacement pump systems; Chinese Academy of Sciences contributes advanced heat treatment metallurgy and elastomer material research for coupling flex element durability; Guangdong University of Technology supports dynamic balancing process automation and spline fit measurement for precision coupling manufacturing.
Attach your pump model and coupling specifications to your inquiry — our engineering team will verify requirements and provide a competitive quotation within 24 hours.
OUR BRANDS & SERVICES
Our self-developed brand was founded to serve the fluid machinery and engineering sector with comprehensive technical solutions. Our ecosystem of proprietary technologies and product brands offers clients high-caliber technical consultation, sales support, and comprehensive product solutions — including pumps, variable frequency converters, servo drives, PLC-HMI, control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-scope engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and equipment debugging by our engineers deployed internationally).
Product Overview
REXNORD Pump Coupling is a mechanical shaft coupling designed to transmit torque between a motor (or engine) drive shaft and a pump shaft while accommodating misalignment, absorbing vibration, and protecting the pump and driver from damage caused by shaft misalignment, thermal expansion, or shock loads. REXNORD is a globally recognized brand in mechanical power transmission, and its pump coupling product line includes several coupling types engineered for pump applications.
REXNORD pump couplings are available in multiple series: elastomeric element couplings (gear-type grid coupling and jaw coupling), metallic disc couplings, and gear couplings. Each type has a specific application range based on torque capacity, speed, misalignment capability, and service environment. The correct coupling selection depends on the pump type (centrifugal, progressive cavity, diaphragm, gear pump), driver type (electric motor, diesel engine, hydraulic motor), shaft sizes, and operating conditions.
Our REXNORD replacement couplings and coupling components are manufactured to the original REXNORD dimensions, with elastomeric elements in standard NBR and premium Hytrel/urethane compounds, metallic disc packs in stainless steel, and gear coupling hubs and sleeves in through-hardened alloy steel with specified tooth form.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Pump Coupling (Shaft Coupling Assembly) – REXNORD brand specification |
|
Application |
Centrifugal pumps, PCP pumps, AODD pumps, Gear pumps, Screw pumps |
|
Coupling Type |
Grid coupling (elastomeric), Jaw coupling, Disc coupling, Gear coupling |
|
Torque Capacity |
Varies by series; grid: up to 250,000 Nm; disc: up to 50,000 Nm; gear: up to 500,000 Nm |
|
Bore Range |
10 mm to 250 mm standard; custom bores and keyways available |
|
Speed Rating |
Up to 6,000 RPM standard; disc coupling up to 12,000 RPM |
|
Misalignment Capacity |
Grid: ±1.5° angular, 0.5 mm parallel; Disc: ±0.5° angular, 0.2 mm parallel; Gear: ±1° angular |
|
Material – Hub |
Forged steel (1045/4140), SS 304, SS 316, Ductile iron |
|
Material – Elastomer Element |
NBR (standard), Hytrel, Urethane, FKM (Viton) |
|
Material – Disc Pack |
SS 301/316 stainless steel laminate |
|
Balance Grade |
G6.3 standard; G2.5 for high-speed applications |
|
Standards |
ISO 1940 (balance), AGMA 9000 (gear), API 610 (option) |
|
Inspection |
Bore gauge, Keyway gauge, Dynamic balance, Hardness, Material cert |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
10–25 days after deposit |
|
Payment |
70% TT in advance, balance against copy of B/L |
REXNORD Coupling Types for Pump Applications
|
Coupling Type |
Flex Element |
Torque Density |
Misalignment Capability |
Typical Pump Application |
|---|---|---|---|---|
|
Grid coupling |
Steel spring grid |
High |
High angular & parallel |
Centrifugal, screw, slurry pumps, high-torque |
|
Jaw coupling |
Elastomer spider |
Low–Moderate |
Moderate |
Small centrifugal, light-duty, close-coupled pumps |
|
Disc coupling |
SS disc pack |
Moderate–High |
Low (precision) |
High-speed, precision-driven, API pumps, turbo |
|
Gear coupling |
Crowned gear teeth |
Highest |
Moderate–High |
Large centrifugal, heavy-duty, steel mill pumps |
Why Choose Our REXNORD Pump Couplings
- Original Dimensional Specifications — Hubs, sleeves, and flex elements are manufactured to match REXNORD original dimensions for direct interchangeability
- Material Flexibility — Hub materials from forged steel to SS 316; elastomer elements in NBR, Hytrel, urethane, or FKM to match environment
- Custom Boring & Keyway — Hubs can be supplied bored and keyed to your shaft dimensions, eliminating on-site machining
- Dynamic Balanced — Standard G6.3 balance for general pump service; G2.5 balance available for high-speed or critical pump applications
- Flex Element Inventory — Common-size elastomer spiders, grid springs, and disc packs stocked for rapid replacement without changing the hubs
