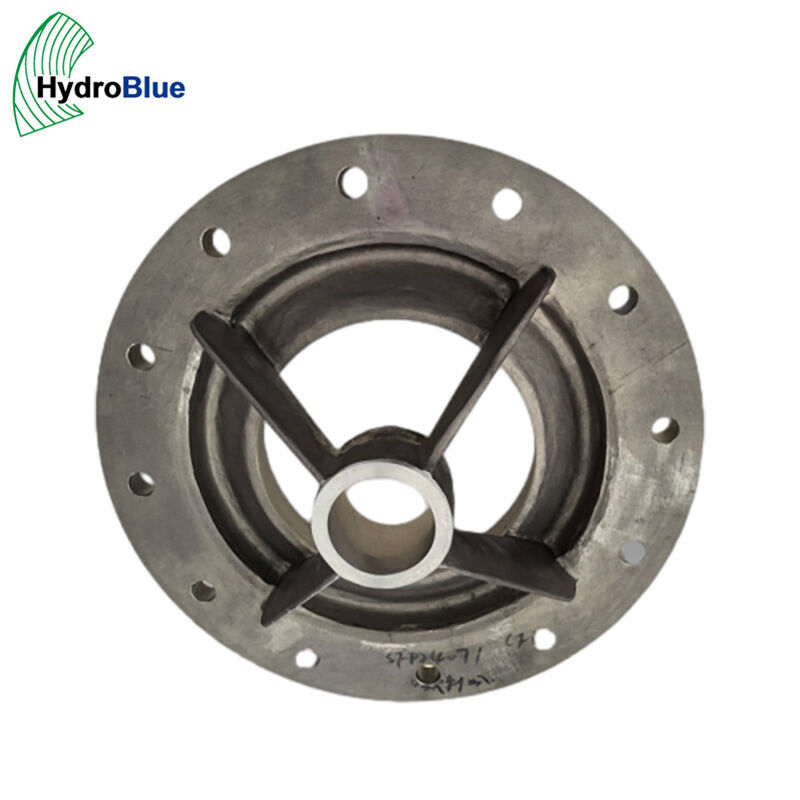

FLOWSERVE Durable Intake Suction Bell for Centrifugal Pump Parts

The intake suction bell is a critical inlet component of centrifugal pumps that ensures smooth, turbulence-free flow into the impeller eye. A poorly designed or worn suction bell causes cavitation, vibration, reduced efficiency, and premature impeller damage. This replacement part is reverse-engineered using FARO 3D laser scanning and CFD-validated hydraulic profiles.

Compatible with FLOWSERVE centrifugal pump models. Contact us with your pump model number for compatibility confirmation.

1. Reverse Engineering — FARO 3D laser scanning of the original part → point cloud processing → CAD model reconstruction → CFD flow simulation to verify hydraulic performance
2. Mould Making — Investment casting mould or sand casting mould based on material selection and production volume requirements
3. Casting — Wax injection (investment casting) or sand packing → shell building / core setting → dewaxing / pouring → post-cleaning → heat treatment
4. CNC Machining — Auto lathe turning of bore and flange faces → meter lathe finishing of critical sealing surfaces → drilling/tapping bolt holes → grinding of mating surfaces → wire EDM for complex internal features
5. Surface Treatment — Blacking, polishing, chrome plating, zinc plating, nickel plating, or custom coating per operating environment
6. Quality Control — Material certificate verification → hydrostatic pressure test → dimensional inspection via 3D coordinate measuring machine → surface roughness testing → hardness testing → NDT (PT/RT/UT/MT)

• Reverse-engineered from your worn sample or photos — no need to source OEM drawings
• CFD-validated hydraulic profile ensures performance matching OEM specifications
• Material upgrade options available (wear-resistant cast iron, duplex stainless steel) for extended service life in demanding applications
• Full material traceability with mill certificates
• Comprehensive quality control including hydrostatic testing, dimensional inspection, and NDT
