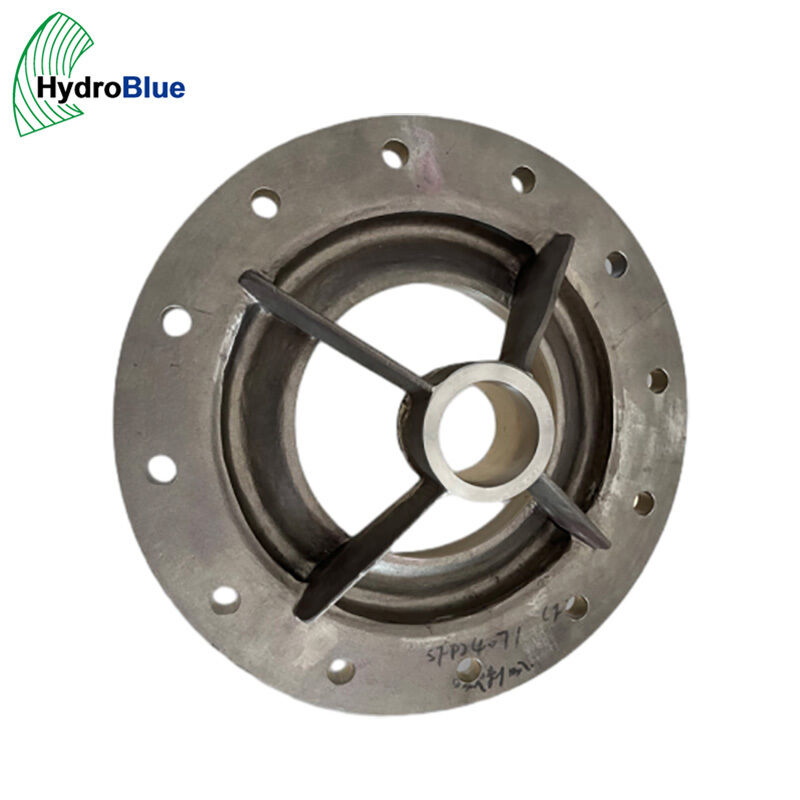

FLOWSERVE High Efficiency Cast Iron Centrifugal Submersible Pump Suction Bell
| Brand Name | FLOWSERVE |
| Model Number | Suction Bell |
Home
>
Products
>
FLOWSERVE Pump Parts
>
FLOWSERVE High Efficiency Cast Iron Centrifugal Submersible Pump Suction Bell
Product Details
Part Type:
Intake Suction Bell
Material:
Stainless Steel
Casting Method:
Investment Casting
Surface Treatment:
Polishing
Standard:
ASTM A351 CF8M
Inspection:
3D Coordinator
Certificate:
API Spec Q1
Highlight:
cast iron submersible pump suction bell
,high efficiency centrifugal pump part
,Flowserve cast iron pump component
Payment & Shipping Terms
Minimum Order Quantity
1
Price
100
Product Description
FLOWSERVE Intake Suction Bell — Application & Technical Data
What This Part Does
The intake suction bell (also called inlet bellmouth or suction bell) sits at the pump suction nozzle. Its job is to guide incoming fluid smoothly into the impeller eye without turbulence, vortex formation, or flow separation. When the bell wears out or is damaged, you get cavitation noise, vibration, reduced head, and accelerated impeller erosion.
This replacement bell is dimensionally interchangeable with the FLOWSERVE OEM part. We scan the original with FARO 3D laser, rebuild the CAD model, run CFD simulation on the internal flow path, and only proceed to casting when the hydraulic profile matches OEM specifications.
Typical Applications
- Oil & Gas: Crude oil transfer pumps, produced water injection pumps — where sand and H2S create abrasive-corrosive wear
- Petrochemical: Process pumps in refineries and chemical plants — high-temperature service requiring cast steel or stainless steel bells
- Power generation: Condensate extraction pumps, circulating water pumps — large-diameter bells where casting quality directly affects NPSH available
- Mining & mineral processing: Slurry pump feed systems, tailings dewatering — highly abrasive environment calling for wear-resistant cast iron
- Water & wastewater: Raw water intake pumps, sewage lift station pumps — corrosion from H2S and chlorides
- Marine & offshore: Ballast pumps, fire water pumps, cooling seawater pumps — saltwater exposure
- Pulp & paper: Stock preparation pumps, white liquor pumps — fiber-laden fluids
Comparison: OEM vs Our Replacement
|
Aspect |
OEM (FLOWSERVE) |
Our Replacement |
|---|---|---|
|
Price |
List price |
Competitive pricing |
|
Lead Time |
Subject to factory schedule |
30 days after deposit |
|
Drawing Required? |
No (they made it) |
No (we scan your sample) |
|
Material Verification |
Full traceability |
Full traceability + mill cert |
|
CFD Validation |
Original design |
Re-validated per batch |
|
Dimensional Check |
CMM inspection |
3D CMM on critical dimensions |
|
Material Upgrade Option |
Standard SKU |
Flexible material selection |
|
Hydrostatic Test |
Standard |
Standard (1.5× rated pressure) |
|
NDT |
Full suite |
Full suite (PT/RT/UT/MT) |
|
After-sales Support |
Factory warranty |
Technical support + remake if mismatch |
Key Technical Parameters
|
Item |
Specification |
|---|---|
|
Compatible Pump Series |
FLOWSERVE centrifugal pumps — contact us for model confirmation |
|
Part Function |
Inlet flow guidance, cavitation suppression, NPSH improvement |
|
Materials Available |
Cast iron, Wear-resistant cast iron, Cast steel, Stainless steel, Duplex stainless steel, Cast alloy steel |
|
Standards |
ASTM, ANSI, SAE, UNS, DIN, EN, ISO, TOCT |
|
Size Range |
Custom sizes available |
|
Connection |
Flanged or welded per original configuration |
|
Reverse Engineering |
FARO 3D laser scan, CAD modeling, CFD validation |
|
Casting |
Investment casting or Sand casting |
|
Process |
CNC machining, Auto lathe, Meter lathe, Wire cutting, EDM, Grinding, Milling, Drilling, Screwing, Cutting, Stamping |
|
Surface Treatment |
Blacking, Polishing, Anodizing, Chrome plating, Zinc plating, Nickel plating, Custom |
|
QC Protocol |
Material cert, Hydrostatic test, CMM dimensional, Roughness/hardness, NDT PT/RT/UT/MT |
|
Certifications |
ISO9001:2015, ISO14001:2004, API Spec Q1 |
|
Delivery |
30 days after receiving deposit |
|
Payment |
70% T/T deposit, balance against B/L copy |
|
Shipping |
Express, Sea freight, Air cargo, Land transport, Post |
