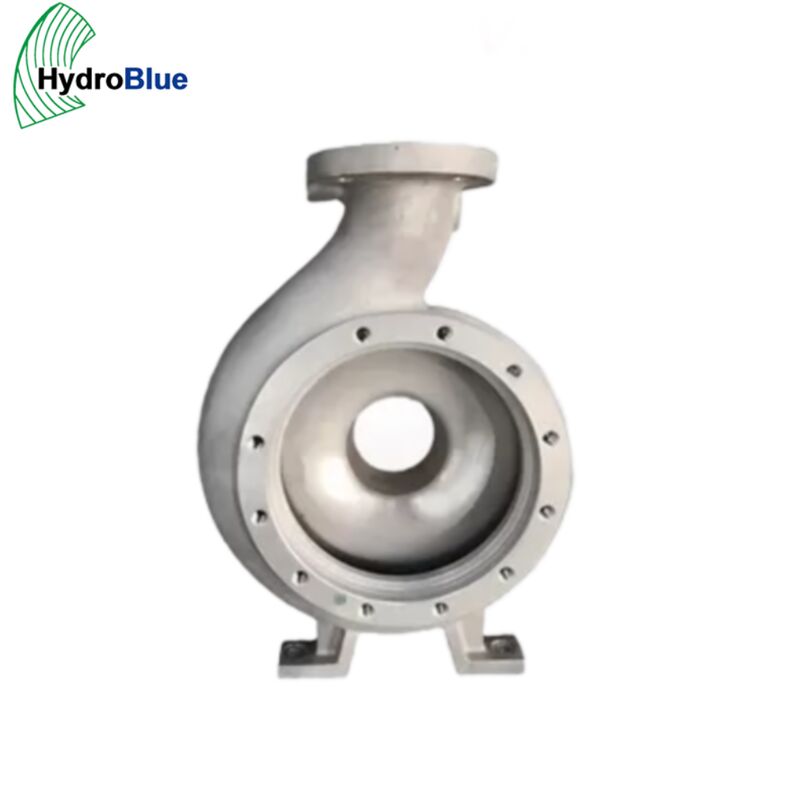

GOULDS Pump Casing – Volute Housing for Centrifugal Pumps
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is a professional provider of overall technical solutions in the fields of fluid machinery and fluid engineering, industrial equipment automation, and frequency converters. The company has multi-professional technical talents, including a total of 8 professional technical talents in fluid engineering, electrical engineering, and electronic engineering. The company has long-term professional and technical cooperation with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology: Jiangsu University National Research Center of Pumps provides CFD-based hydraulic passage optimization for GOULDS casing designs; Chinese Academy of Sciences contributes advanced corrosion-resistant casting alloy formulations for extended casing life in aggressive fluid service; Guangdong University of Technology supports intelligent drive systems and automated manufacturing process control.
Share your pump model and casing requirements with us — our engineering team will confirm compatibility and provide a detailed technical response.
OUR BRANDS & SERVICES
Our proprietary brand delivers complete technical solutions for fluid machinery and engineering systems. We specialize in industrial control and drive equipment, mechanical seals, and international field engineering support. Through our ecosystem of specialized technologies and product brands, we provide clients with high-level technical advisory, commercial support, and integrated product solutions — including pumps, variable frequency converters, servo drives, PLC-HMI interfaces, industrial control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and turnkey engineering services (overseas on-site 3D scanning reverse molding for pump replacement parts and equipment debugging by our dispatched engineers abroad).
Product Overview
GOULDS Pump Casing (also referred to as the volute casing, pump housing, or lower casing half in horizontally split designs) is the stationary pressure-containing component that surrounds the impeller and converts kinetic energy from the discharged fluid into pressure energy through its progressively expanding volute channel. The casing also provides the suction and discharge nozzle connections, the mounting feet for baseplate attachment, and the register fits for the casing cover or stuffing box cover.
GOULDS pump casings are available in several configurations depending on the pump series: end-suction volute (most common for GOULDS 3196/HT3196 series and similar process pumps), horizontally split (suction and discharge nozzles on the lower half for ease of rotor access without disturbing piping), and vertical inline (discharge at centerline for self-venting). Within each configuration, the casing bore diameter determines the impeller trim allowance, the wall thickness defines the pressure rating, and the nozzle orientation affects installation piping flexibility.
Our GOULDS replacement pump casings are produced from FARO 3D scanning data or original drawings, using resin sand or V-process casting, CNC-machined on all critical interfaces, and hydrostatically pressure tested before dispatch.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Pump Casing (Volute Housing) – GOULDS centrifugal pump replacement |
|
Application |
GOULDS 3196, HT3196, 3175, 3296, 3700, VIC series — contact for model compatibility |
|
Casing Type |
End-suction volute, Horizontally split (upper/lower), Vertical inline, Ring section |
|
Material |
Cast iron (GG25), Ductile iron (GGG40/50), Cast steel (WCB), SS 316 (CF8M), CD4MCu, Alloy 20 |
|
Standards |
ANSI B73.1, ANSI B73.2, ASME, ASTM, ISO |
|
Nozzle Configuration |
End suction / Top discharge (standard), End suction / Side discharge, Centerline discharge |
|
Casting Method |
Resin sand casting, V-process (large casings), Investment casting (small sizes) |
|
Process |
CNC machining, Boring, Milling, Drilling, Tapping, Grinding |
|
Pressure Test |
Hydrostatic test per applicable standard |
|
Surface Treatment |
Epoxy coating (internal/external), Zinc-rich primer, Rubber lining, Polyurethane lining |
|
Reverse-Engineering |
FARO 3D Laser Scanning, CAD reconstruction |
|
Inspection |
3D CMM, Hydrostatic test, NDT (MT/PT), Hardness, Material cert |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
40–70 days after deposit |
|
Payment |
70% TT in advance, balance against copy of B/L |
Material Options
|
Material |
Key Properties |
Typical GOULDS Application |
|---|---|---|
|
Cast Iron GG25 |
Good castability, cost-effective, adequate for standard process applications |
3196/HT3196 standard build, water, mild chemicals |
|
Ductile Iron GGG40 |
Higher tensile strength and impact resistance than gray iron |
Higher pressure ratings, larger casing sizes, abrasive service |
|
Cast Steel WCB |
Superior strength and high-temperature capability, weld-repairable |
High-temperature process, oil & gas, power generation |
|
SS 316 CF8M |
Excellent corrosion resistance for aggressive and corrosive fluids |
Chemical process, pharmaceutical, food, marine |
|
CD4MCu Duplex |
High strength combined with superior wear and corrosion resistance |
High-chloride environments, combined corrosion and abrasion |
Why Choose Our GOULDS Casing Replacement
- OEM Fit Guarantee — Casings are produced from FARO 3D scan data of the original GOULDS part or from verified OEM drawings, ensuring bolt patterns, register fits, and nozzle orientations match without piping modification
- Full Pressure Test — Every casing is hydrostatically tested at 1.5× the rated working pressure before surface treatment and dispatch
- ANSI Dimensional Compliance — For ANSI B73.1/B73.2 series GOULDS pumps, our casings maintain face-to-face dimensions, centerline heights, and nozzle ratings per the standard
- Internal Coating Options — Epoxy, rubber, or polyurethane internal lining available for corrosion and erosion protection in aggressive service
- Pattern Retention — Casting patterns are retained for repeat orders, ensuring consistent geometry and wall thickness across production runs
