Product Details
Model NO.:
Suction Casing
Pump Package:
Carton And Wooden Cases
Testing:
Dynamic Balancing
Types Of Welding Parts:
OEM/ODM
Material Standard:
ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct
Material:
Cast Iron / Cast Steel Wcb / SS304 / SS316
Certificate:
ISO9001:2015, ISO14001:2004
Mould:
Investment Casting Mould, Sand Casting Mould
Pump Model.:
Nm011by02s12b, Nm021by02s12b Nm031by02s12b, Nm038b
Suitable Brand:
Netzsch
Transport Package:
Carton And Wooden Cases
Specification:
According To The Drawings
Trademark:
HydroBlue
Origin:
China
HS Code:
84139100
Production Capacity:
10, 000 Tons Per Year
Highlight:
Netzsch screw pump suction casing
,Netzsch pump spare parts
,factory price Netzsch pump casing
Payment & Shipping Terms
Minimum Order Quantity
1
Price
50
Product Description

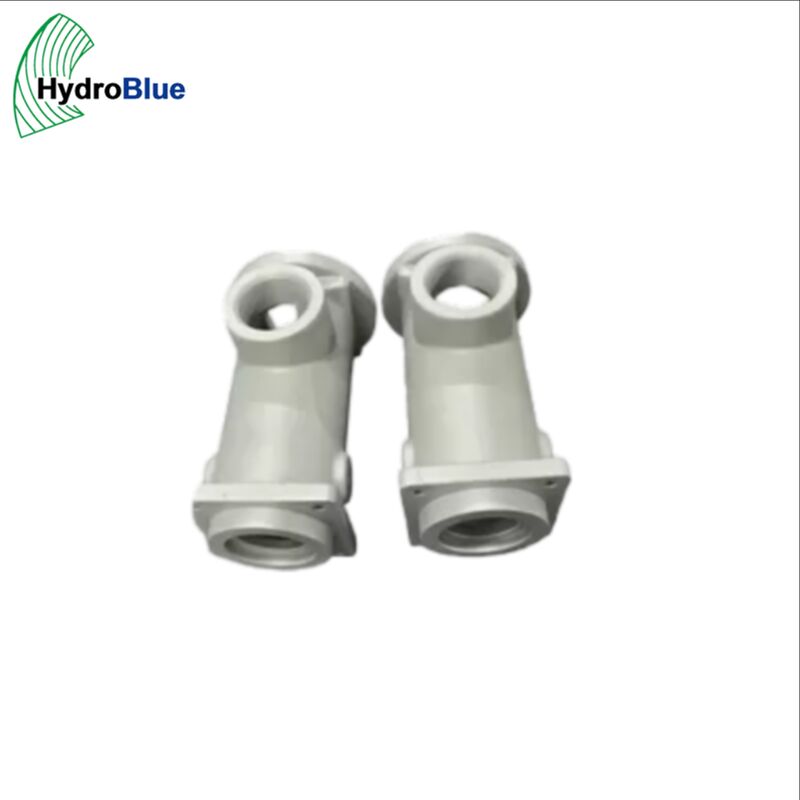

NETZSCH Suction Housing – Suction Casing & Intake Shell for Rotary Pumps
About Dongguan HydroBlue Co., Ltd.
DONGGUAN HydroBlue CO.,LTD. is a client-focused technical enterprise offering end-to-end solutions in fluid machinery, fluid engineering, industrial automation, and frequency conversion technologies. Our 8-person technical team covers fluid engineering, electrical engineering, and electronic engineering disciplines, enabling us to translate R&D capabilities into reliable commercial products. Alliances with Jiangsu University, Chinese Academy of Sciences, and Guangdong University of Technology strengthen our expertise in hydraulic systems, specialized coatings, and industrial control technologies. Jiangsu University National Research Center of Pumps supports suction inlet design optimization and NPSH analysis for NETZSCH pump suction housings; Chinese Academy of Sciences contributes advanced casting metallurgy and corrosion-resistant alloy development for suction shell durability; Guangdong University of Technology advances automated inspection systems and digital quality tracking for our pump component manufacturing.
Attach your pump model and suction housing requirements to your inquiry — our engineering team will verify specifications and provide a competitive quotation within 24 hours.
OUR BRANDS & SERVICES
Our self-developed brand was founded to serve the fluid machinery and engineering sector with comprehensive technical solutions. Our ecosystem of proprietary technologies and product brands offers clients high-caliber technical consultation, sales support, and comprehensive product solutions — including pumps, variable frequency converters, servo drives, PLC-HMI, control cabinets, motors, mechanical seals and assemblies, couplings, gearboxes, and full-scope engineering services (overseas on-site 3D scanning reverse molding of pump replacement parts and equipment debugging by our engineers deployed internationally).
Product Overview
NETZSCH Suction Housing (also called the suction casing, suction shell, or inlet casing) is the pressure-containing component at the inlet side of a rotary positive displacement pump that receives the pumped fluid from the suction pipe and directs it into the pumping element. In NETZSCH Nemo, Tornado, and Progressing Cavity pump series, the suction housing forms the suction-side pressure boundary, houses the suction joint and inlet flange, and provides the seal interface for the drive-end stuffing box or mechanical seal.
For eccentric screw pumps (NEMO series), the suction housing features a rectangular or circular inlet port sized to the pump capacity, with a Suction Cover that allows rotor and stator access without disturbing the suction piping. For lobe and multi-twist pumps (Tornado series), the suction housing incorporates the inlet port, bearing housing interface, and seal chamber in an integrated casting. The suction housing must be designed to minimize inlet losses and maintain adequate NPSH to prevent cavitation at the pump inlet.
NETZSCH suction housings are manufactured in grey cast iron, nodular cast iron, cast steel, stainless steel, and duplex stainless depending on the fluid service. Surface treatments include internal epoxy coating for corrosion protection, rubber lining for abrasive or erosive fluids, and external primer and finish paint.
Our NETZSCH replacement suction housings are produced using FARO 3D scanning or OEM drawings, precision-cast and CNC-machined on all critical sealing and mounting interfaces, and hydrostatically tested before dispatch.
Technical Specification
|
Category |
Details |
|---|---|
|
Product |
Suction Housing (Suction Casing / Suction Shell) – NETZSCH pump replacement |
|
Application |
NETZSCH Nemo, Tornado, Progressing Cavity, Lobe pump series — contact for model compatibility |
|
Suction Housing Type |
Eccentric screw pump suction housing, Lobe pump suction casing, Tornado rotary pump inlet shell, Sanitary inlet housing |
|
Material |
Cast iron (GG25), Ductile iron (GGG40), Cast steel (WCB), SS 304, SS 316, Duplex SS (CD4MCu) |
|
Standards |
DIN, EN, ISO, 3A Sanitary (sanitary models), FDA (food-grade models) |
|
Flange Rating |
DIN PN10/16/25/40, ANSI B16.5 Class 150/300 |
|
Casting Method |
Resin sand casting, V-process (large housings), Investment casting (sanitary/small) |
|
Process |
CNC machining, Boring, Milling, Drilling, Tapping, Internal boring |
|
Surface Treatment |
Epoxy internal coating, Rubber lining, PTFE lining, External primer & finish paint |
|
Reverse-Engineering |
FARO 3D Laser Scanning, CAD reconstruction |
|
Inspection |
3D CMM, Hydrostatic test, NDT (MT/PT), Material cert, Dimensional report |
|
Certificate |
ISO9001:2015, ISO14001:2004 |
|
Delivery |
35–55 days after deposit |
|
Payment |
70% TT in advance, balance against copy of B/L |
Suction Housing Types & Applications
|
Housing Type |
Pump Series |
Key Feature |
Typical Service |
|---|---|---|---|
|
NEMO Eccentric Screw Suction |
NETZSCH Nemo series |
Rectangular inlet port, Suction Cover for stator access |
Sludge, wastewater, viscous fluids, shear-sensitive media |
|
Tornado Lobe Pump Suction Casing |
NETZSCH Tornado series |
Circular inlet, integrated bearing/seal housing |
Food, beverage, cosmetics, chemical |
|
Progressing Cavity Suction Block |
NETZSCH Progressing Cavity |
Large rectangular inlet, pressure-stabilized |
Municipal sludge, industrial waste, high-viscosity |
|
Sanitary Suction Housing |
NETZSCH Sanitary / Hygienic series |
3A certified, polished internal surface (Ra ≤ 0.8 μm) |
Food, dairy, pharmaceutical, biotech |
Why Choose Our NETZSCH Suction Housings
- Full NETZSCH Compatibility — Suction housings are dimensionally verified against FARO 3D scan data or OEM drawings, ensuring correct flange drilling, inlet bore, seal register, and bearing housing interface fit
- NPSH-Informed Design — Suction inlet geometry is reproduced to the original design to maintain the pump's inlet conditions and prevent premature cavitation
- Lining & Coating Options — Rubber-lined or epoxy-coated housings available for corrosive and erosive fluid service, matching the original NETZSCH lining specification
- Sanitary Models Available — 3A-certified and FDA-compliant suction housings with polished internal surfaces for food, dairy, and pharmaceutical applications
- Full Pressure Test — Every suction housing is hydrostatically tested before dispatch; test certificate included with shipment
